Headlamp: Testing and Inspection

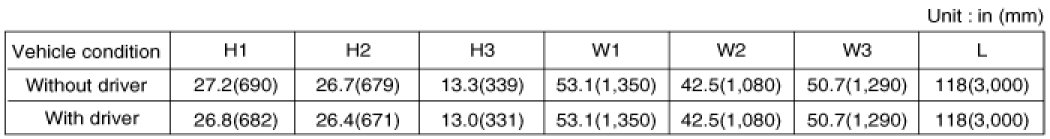

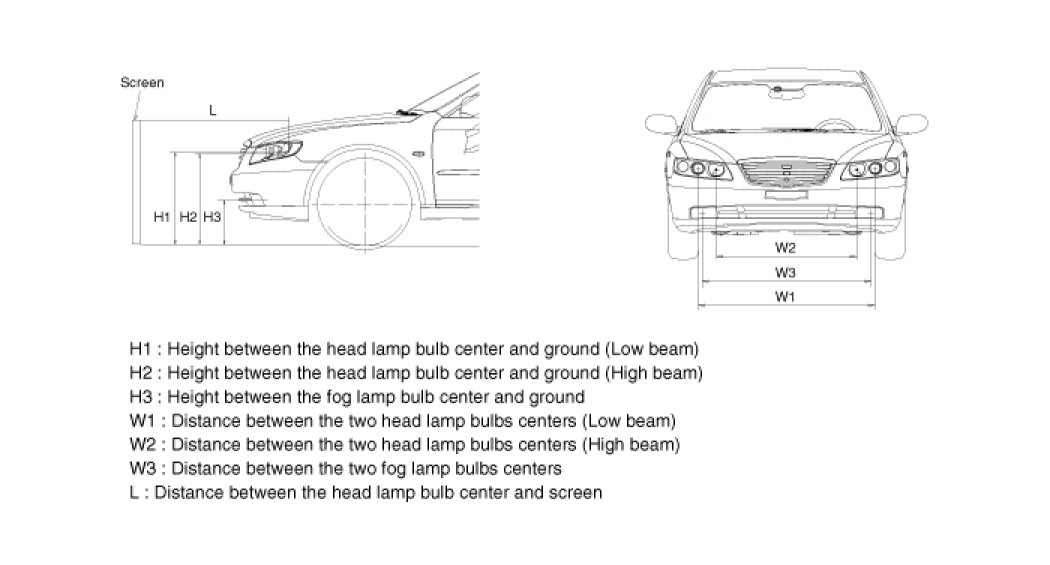

InspectionHead Lamp And Fog Lamp Aiming Point 1.

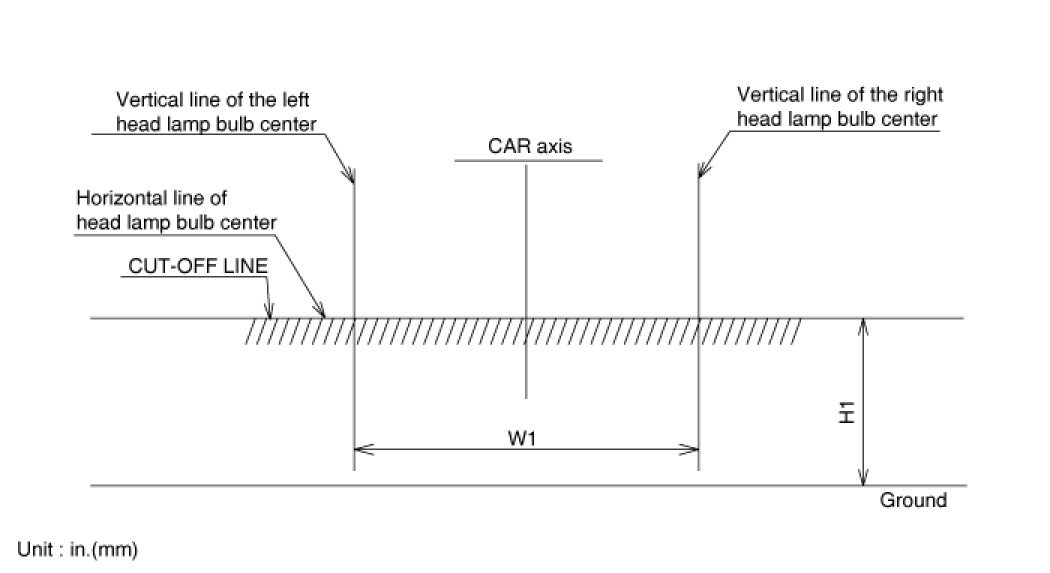

Turn the low beam on with driver.
The cut-off line should be projected in the allowable range (shaded region).
2.

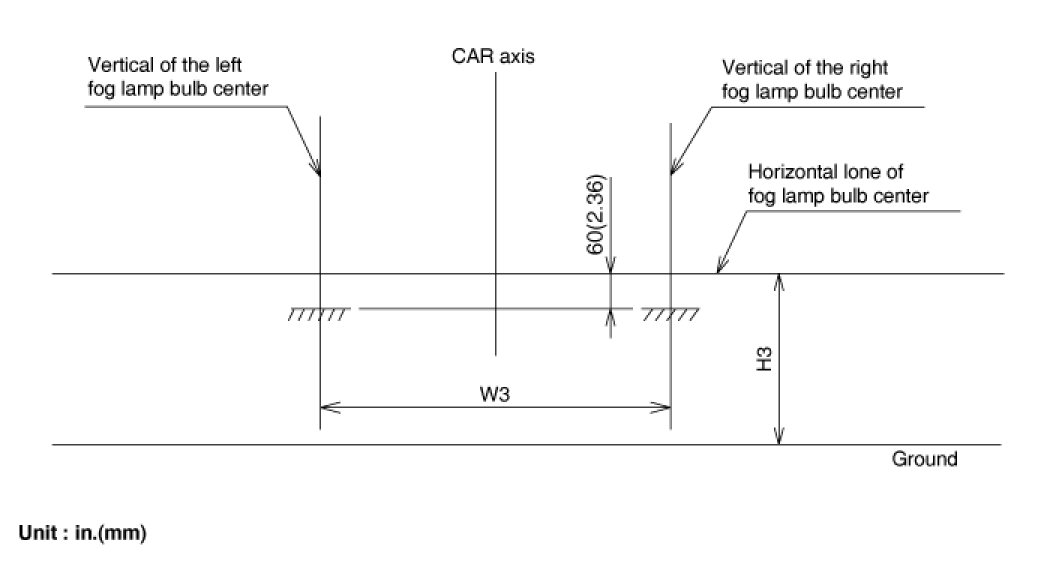

Turn the front fog lamp on with driver.
The cut-off line should be projected in the allowable range (shaded region)
