A/T - MIL ON/DTC's P0705/P0707/P0708/No Start In P/N: Overview

Group
TRANSAXLE

Number
09-AT-013

Date
JULY, 2009

Model
ALL EXCEPT VERACRUZ AND GENESIS

Subject
AUTOMATIC TRANSAXLE RANGE SWITCH DIAGNOSTIC TROUBLE CODES P0705, P0707, P0708

This TSB supersedes TSB 03-40-013 to add repair information (Steps 2-3).

DESCRIPTION:

An improperly adjusted or improperly operating range switch may result in the following conditions:

^ Diagnostic trouble codes:

^ P0705 - Range switch signal problem

^ P0707 - Range switch - open circuit

^ P0708 - Range switch - short circuit or multiple inputs

^ Malfunction Indicator Light (MIL) illuminated

^ Impossible engine start in "P" or "N"

This TSB provides information concerning the proper adjustment and diagnosis of the transaxle range switch.

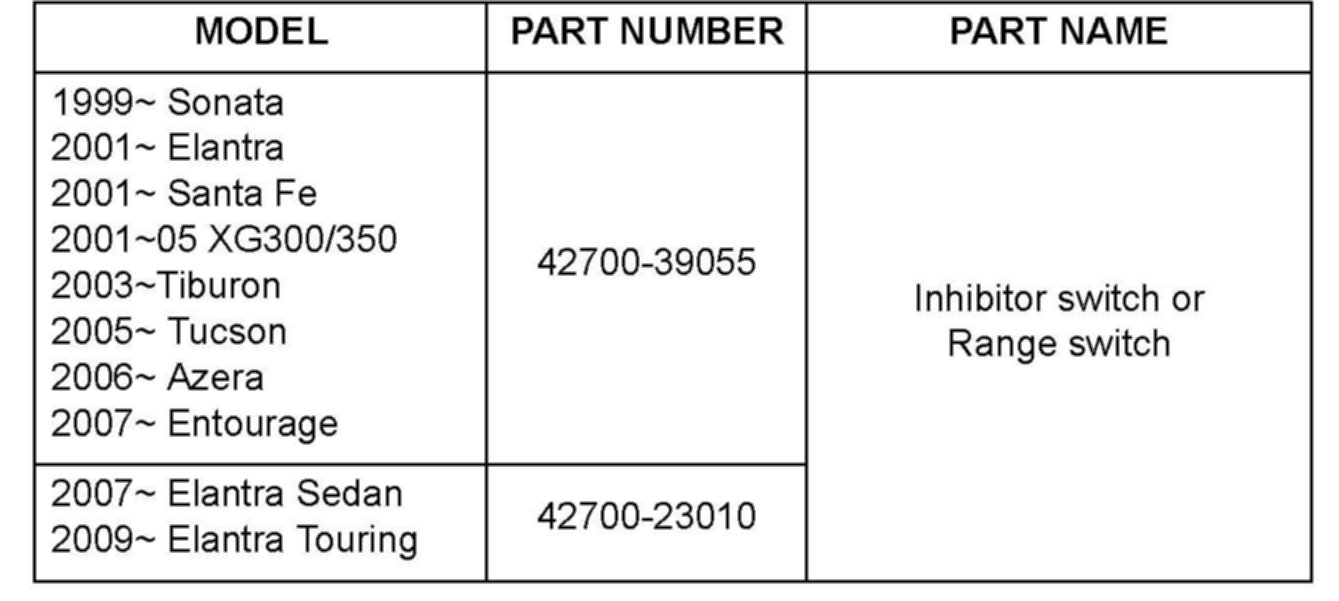

PARTS INFORMATION

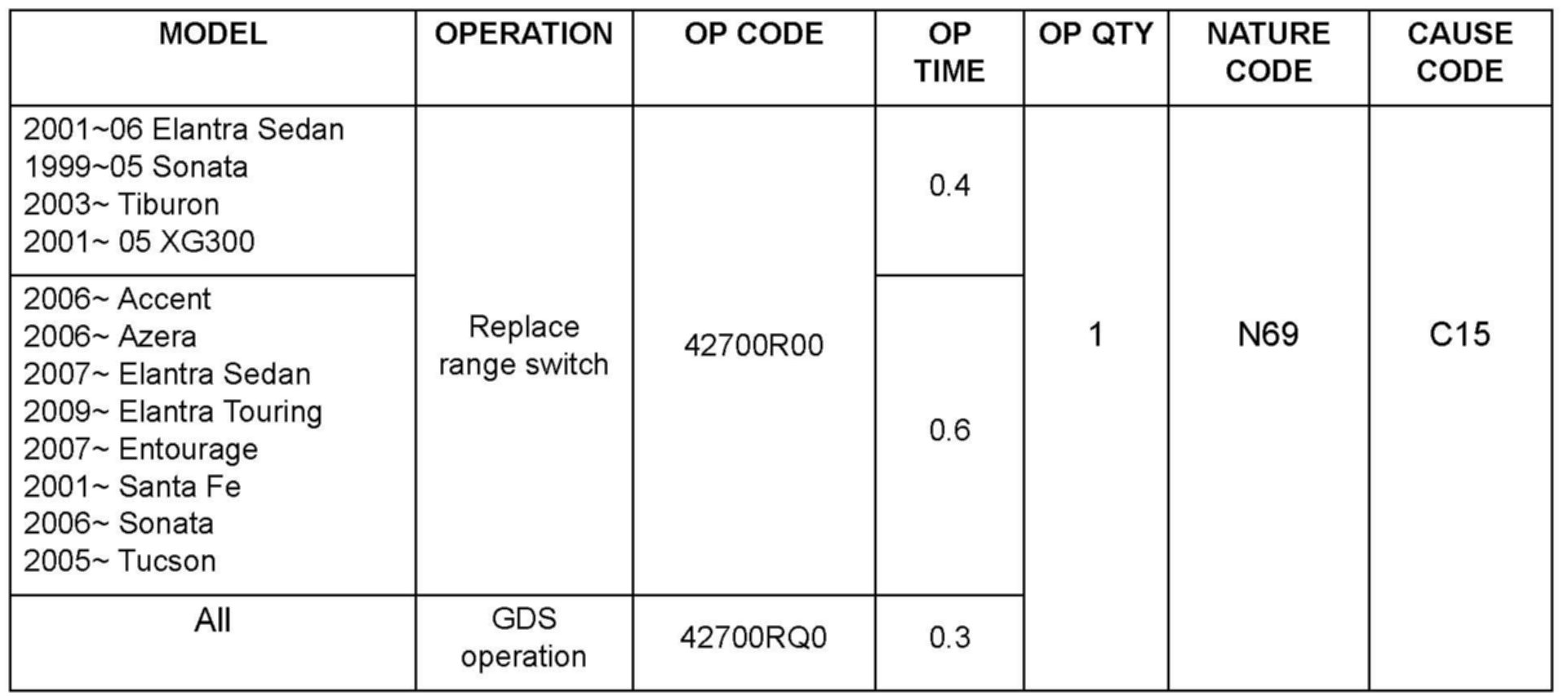

WARRANTY INFORMATION
