Cylinder Head
NOTE: Head Bolts are reusable.

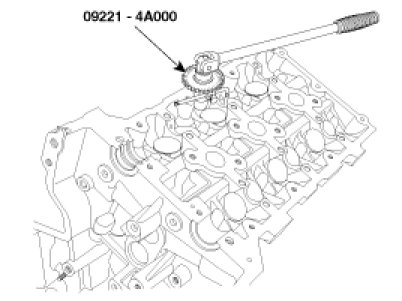

Cylinder HeadUsing SST(09221-4A000), install and tighten the

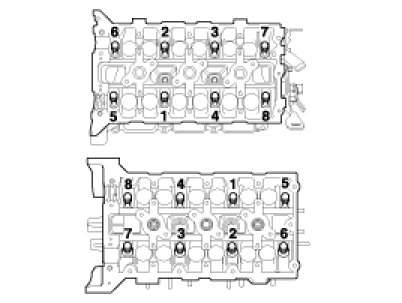

cylinder head bolts and plate washers, in several passes, in the sequence shown.
Tightening torque1st step
37.3 - 41.2 Nm(3.8 - 4.2 kgf.m, 27.5 - 30.4 lb-ft)
2nd step
120°±2°
3rd step
90°±2°

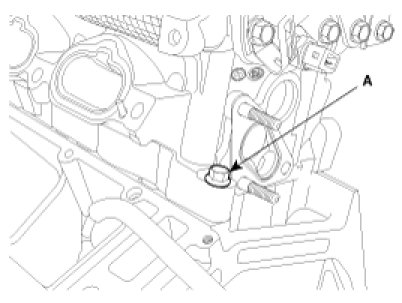

18.62 - 23.52 Nm(1.9 - 2.4 kgf.m, 13.74 - 17.36 lb-ft)(A)
NOTE: Always use new
cylinder head bolts.
