Replacement

Replacement

1. Using the special tools(09214-32000 & 09216- 211000), remove the bushing from the lower arm.

2. Apply soap solution to the following parts.
A. Outer surface of the bushing.
B. Inner surface of the lower bushing mounting part.
3. Using the special tools(09214-32000 & 09216-21100), install the busing on the lower arm.

CAUTION:

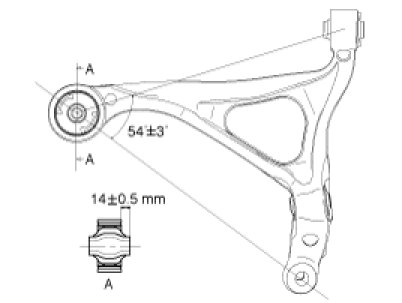

Insert bushing in the direction shown in the illustration.

Separation force is over 800N.m (800kgf, 1,763lbf)
