Trip Computer: Service and Repair
Removal 1.
Disconnect the negative (-) battery terminal.
2.

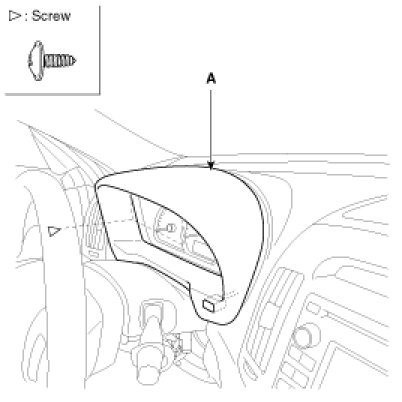

Remove the cluster facia panel (A) after loosening 2 screws.
3.

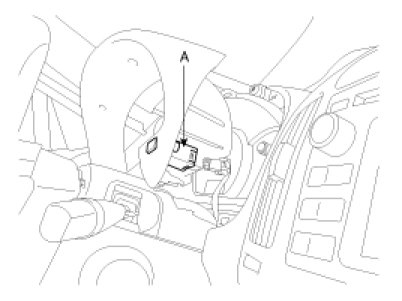

Remove the trip computer switch (A) from the cluster facia panel after disconnecting the
trip computer connector.
Installation 1.
Install the
trip computer to the cluster facia panel.
2.
Install the cluster facia panel.
