Seat Back Frame: Service and Repair





Replacement

Seat Frame Replacement
1. Remove the following items.
A. Recliner cover.
B. Seat back panel.
C. Headrest guide.
D. Seat back cover.

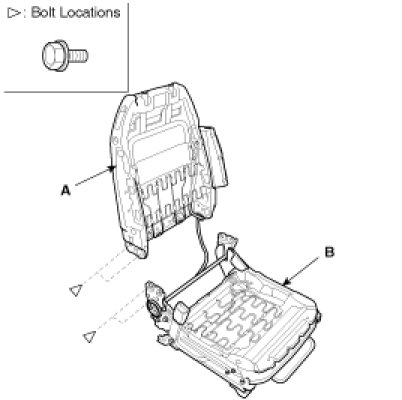

2. After loosening the mounting bolts, then disconnect the seat back frame (A) and seat cushion frame (B).

NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precautions and service procedure relevant to air bag.




3. Installation is the reverse of removal.

NOTE:
After installing the OCS, confirm proper system operation : Turn the ignition switch ON, the SRS indicator should be turned on for about six seconds and then go off.
Telltale lamp will turn on for 4 seconds and be turned off afterward.
