Manual Controller
Replacement 1.
Disconnect the negative (-) battery terminal.
2.

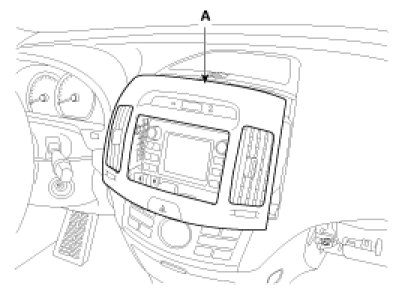

After disconnect the mounting clip, remove the center facia panel(A).
3.
After loosening the mounting screw, remove the center facia lower panel(A).
4.

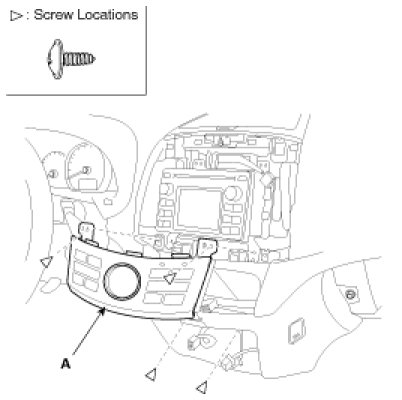

Remove the heater & A/C controller (A) after loosening 4 screws.
5.

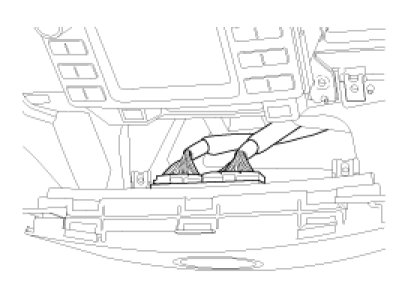

Disconnect the connectors (A) from the center facia.
6.
Installation is the reverse order of removal.
