Pinout Values and Diagnostic Parameters





Engine Control Module (ECM)

1. Harness Connector

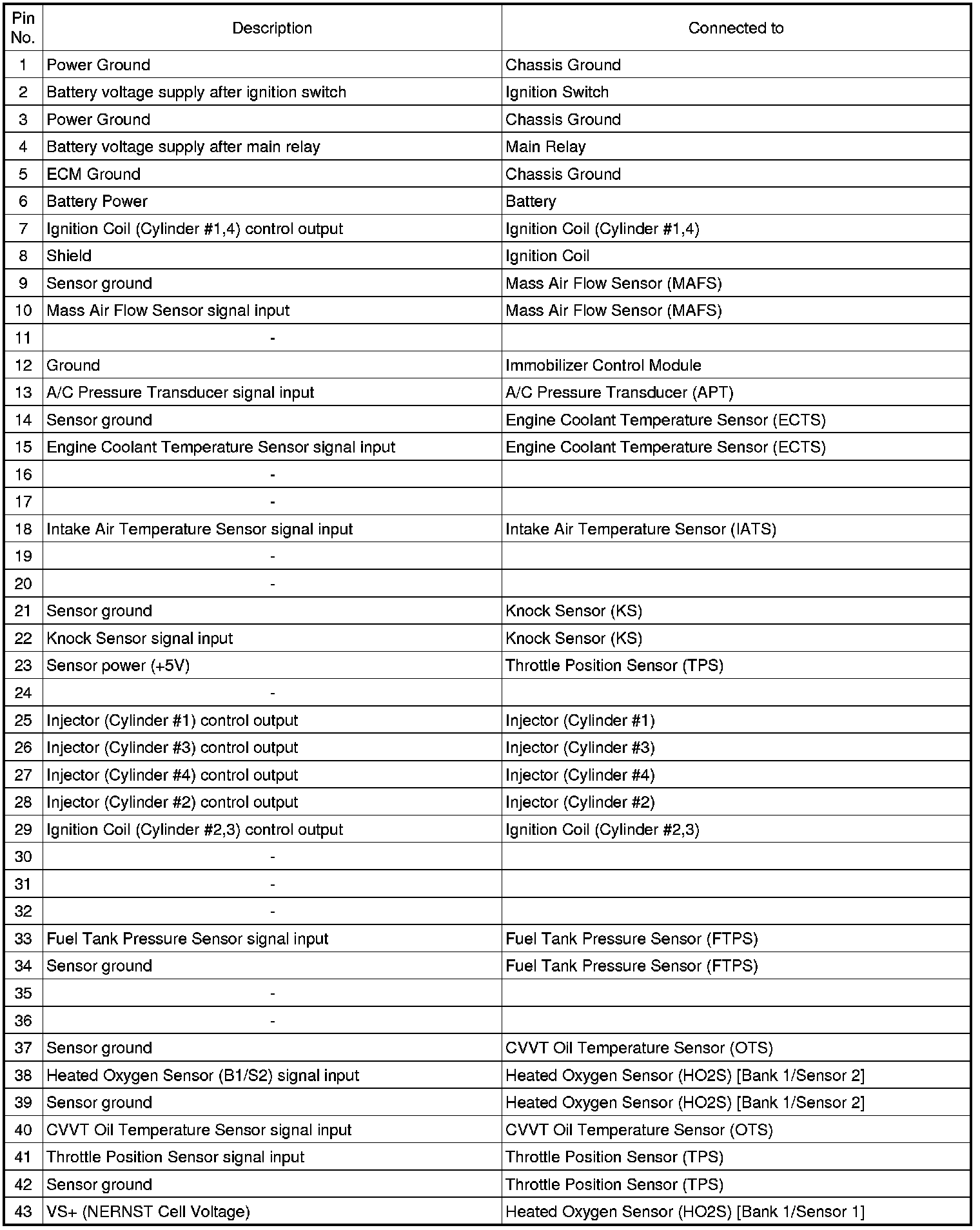

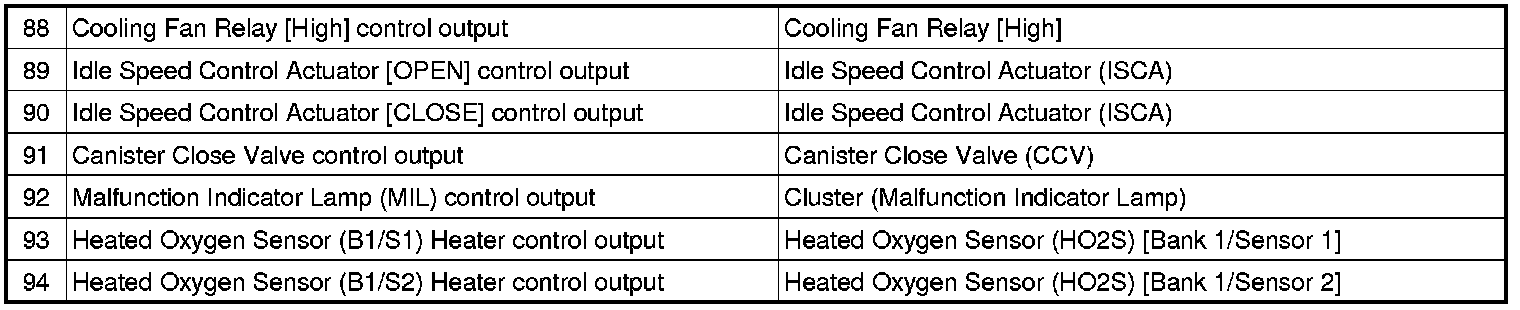

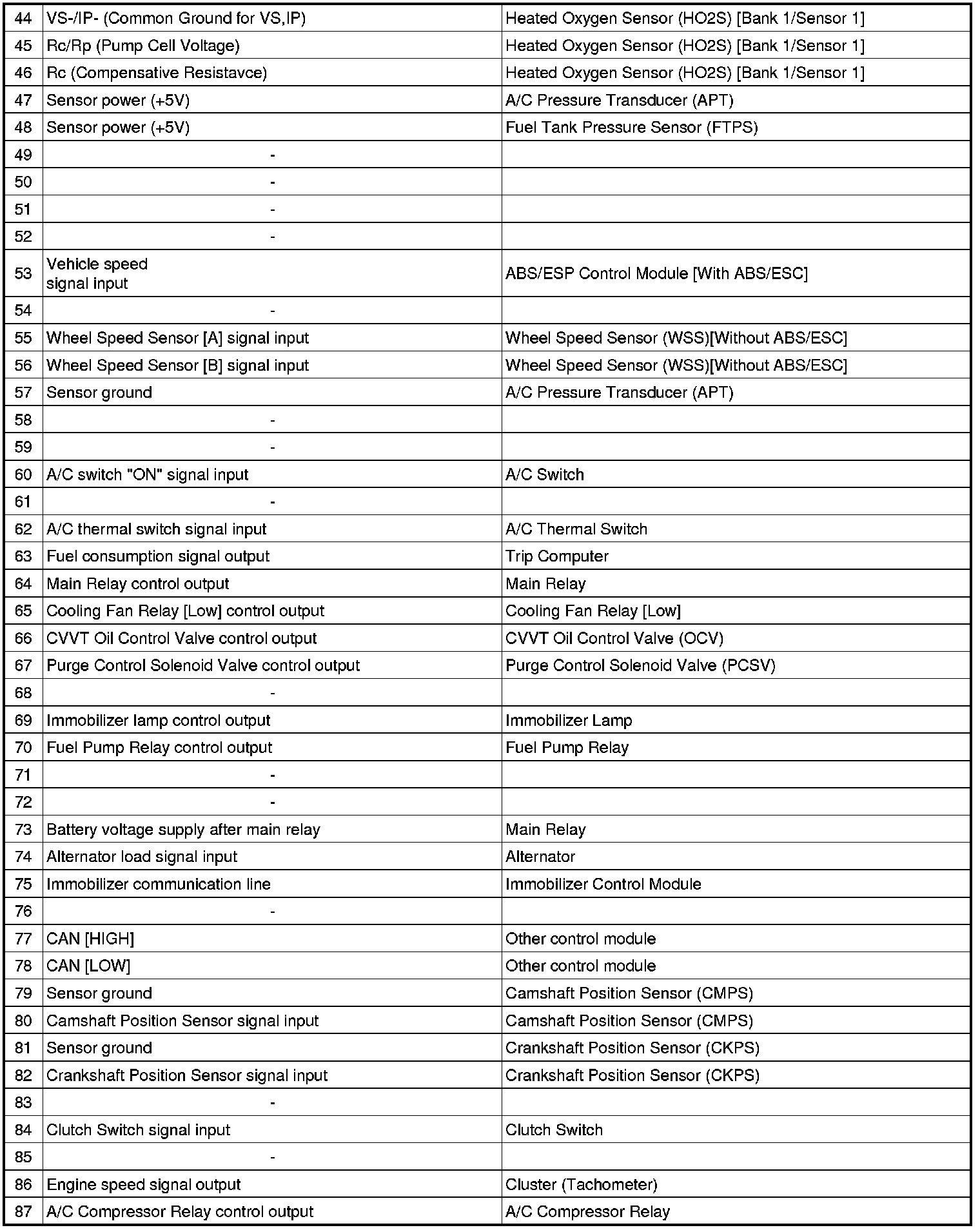

2. Terminal Function
Connector [CBG-K]

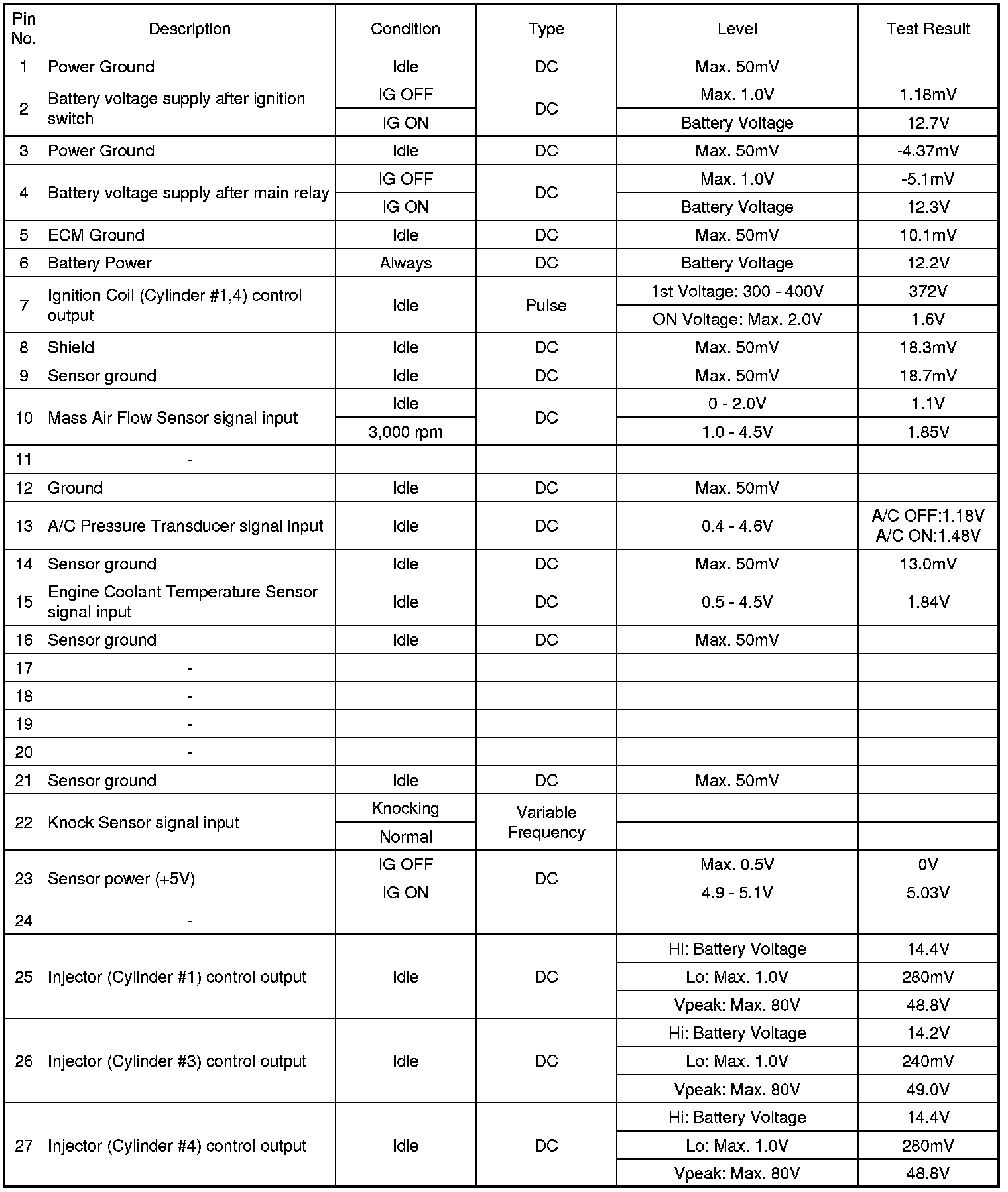

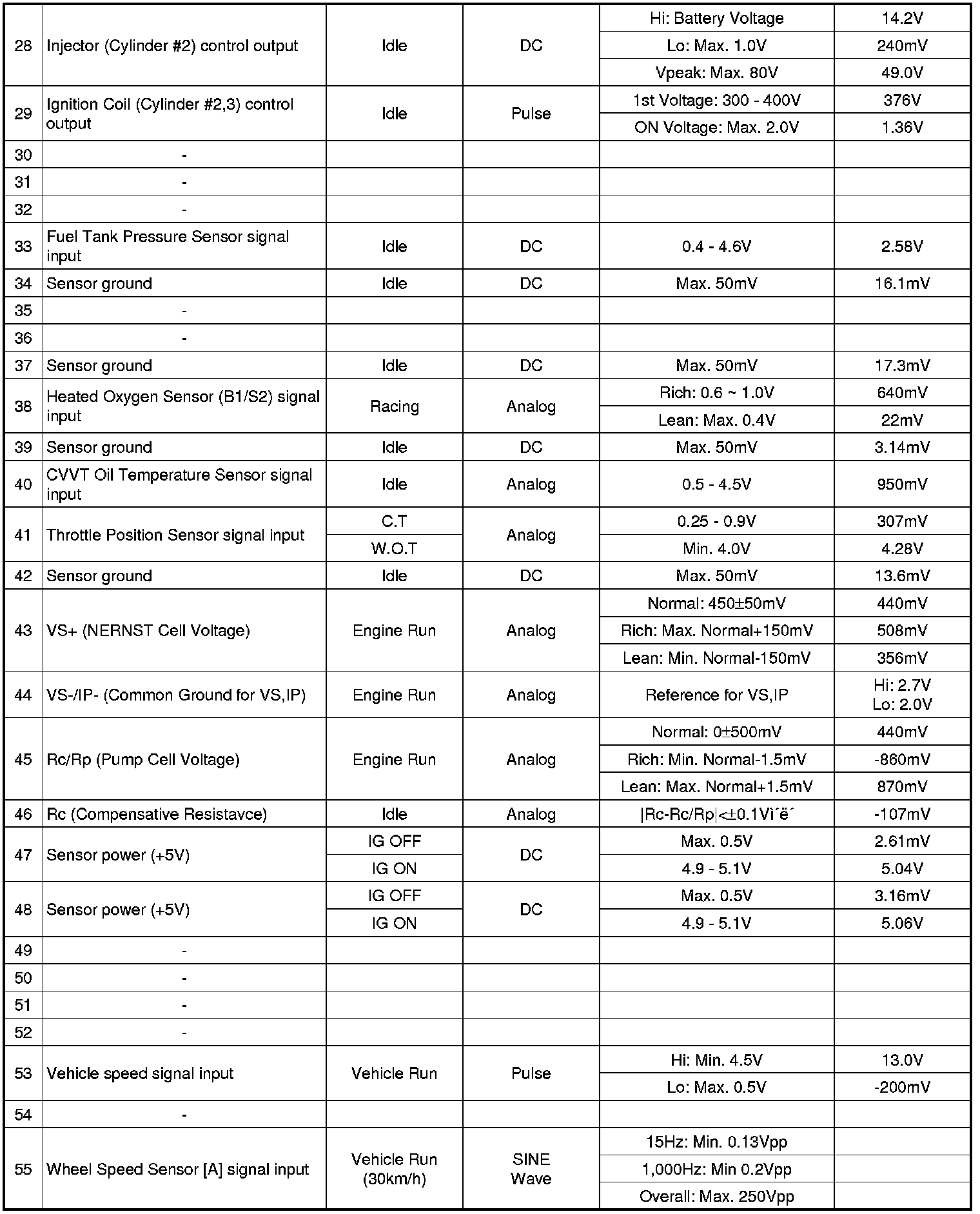

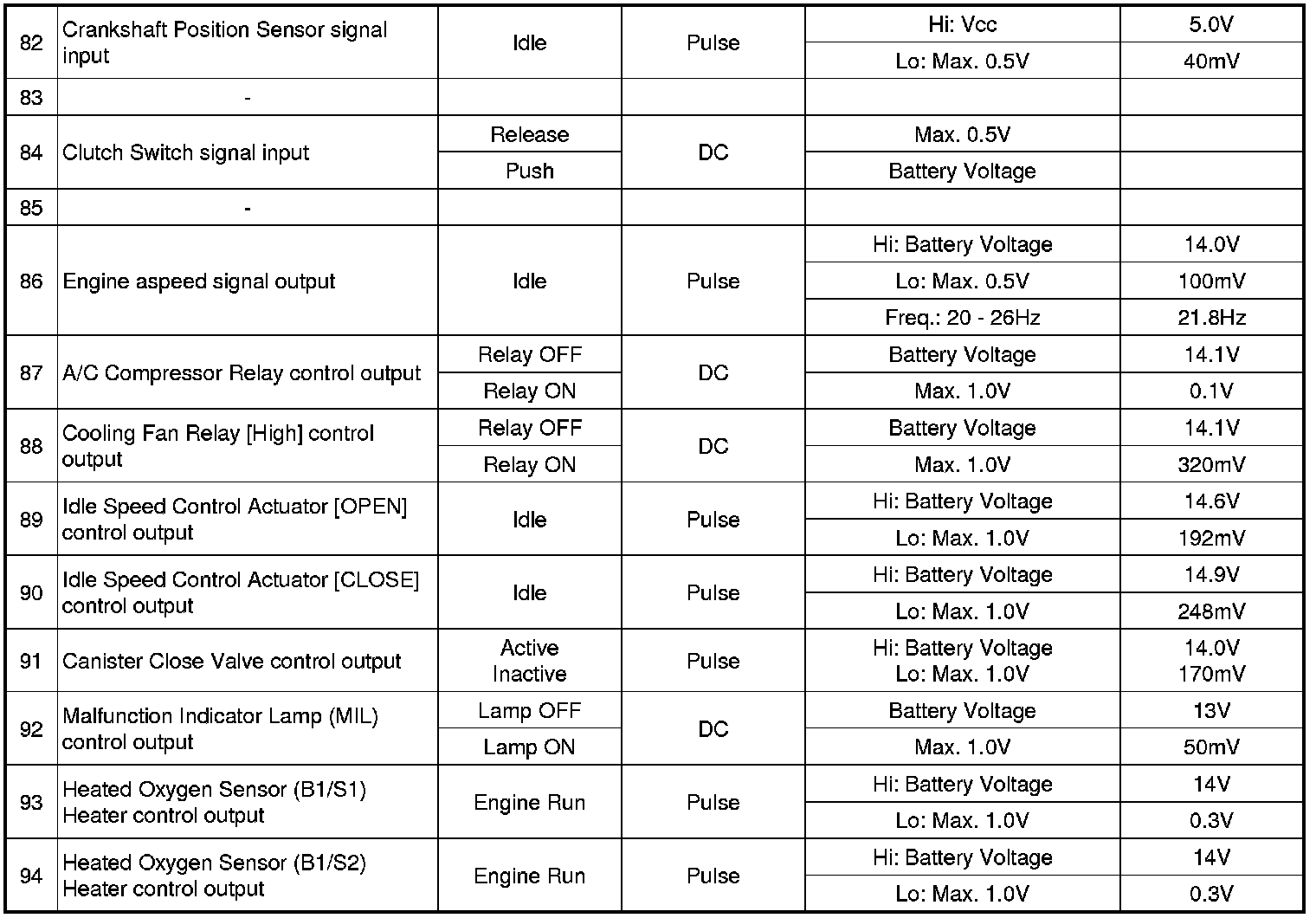

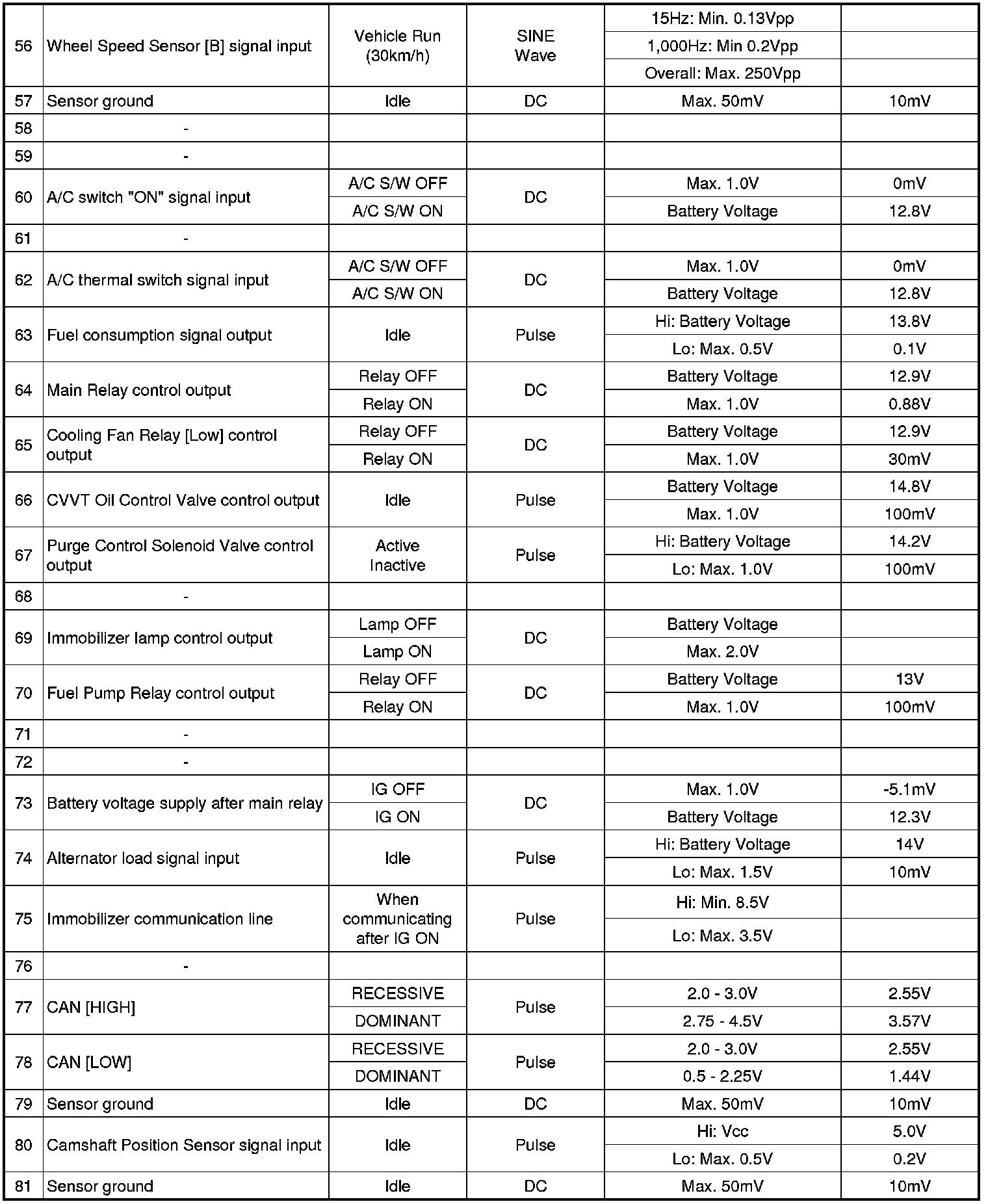

3. Terminal Input/output Signal
Connector [CBG-K]

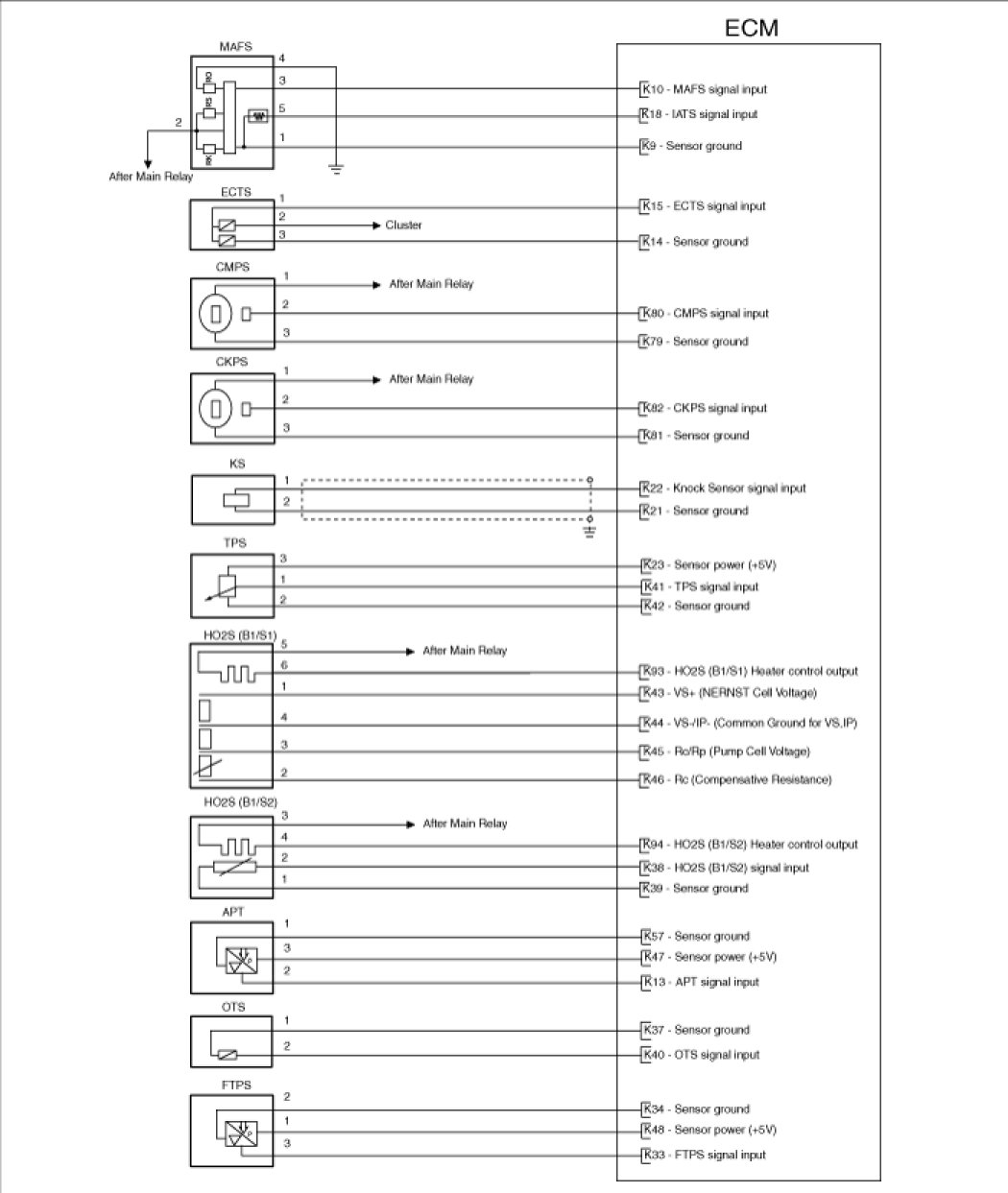

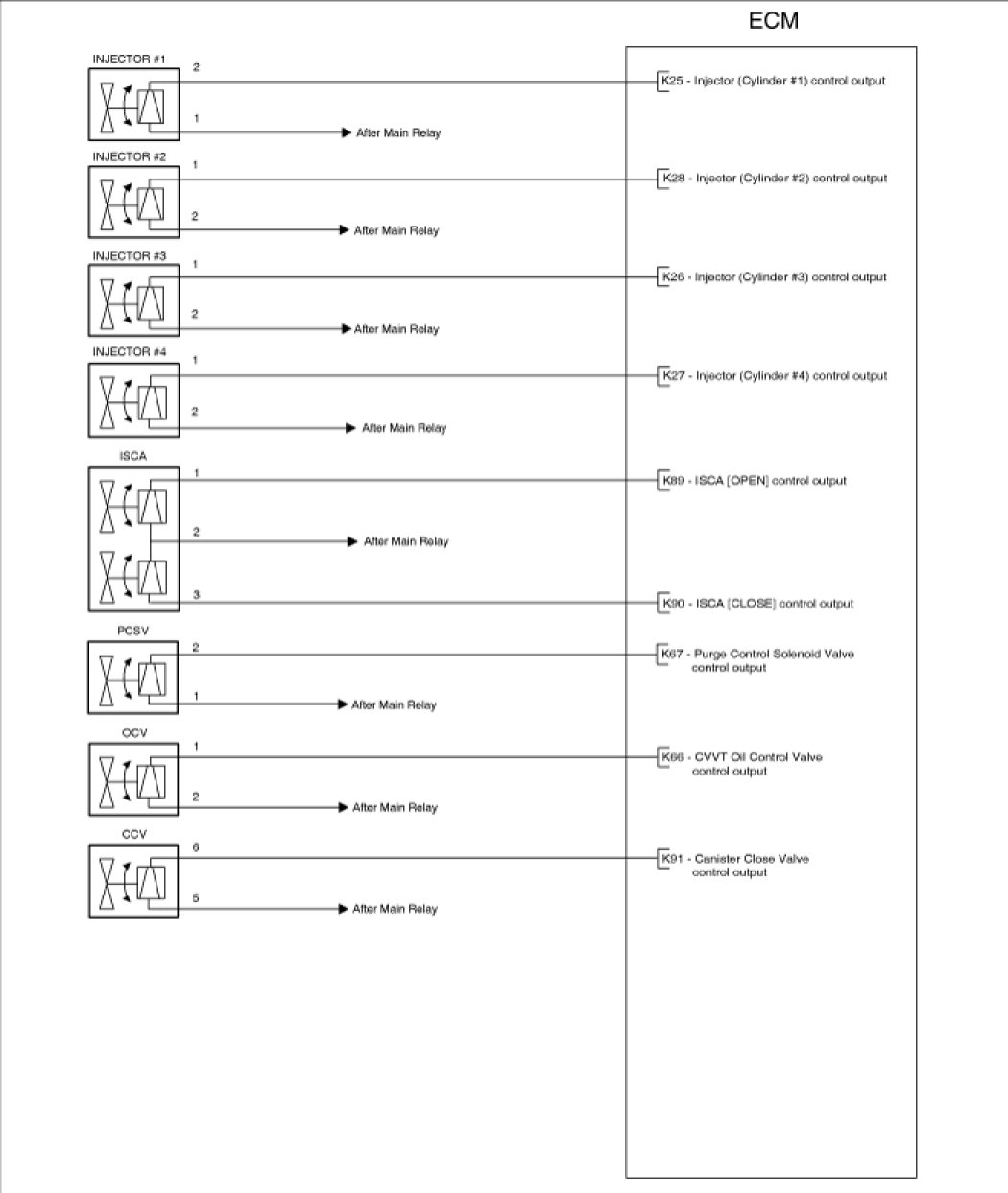

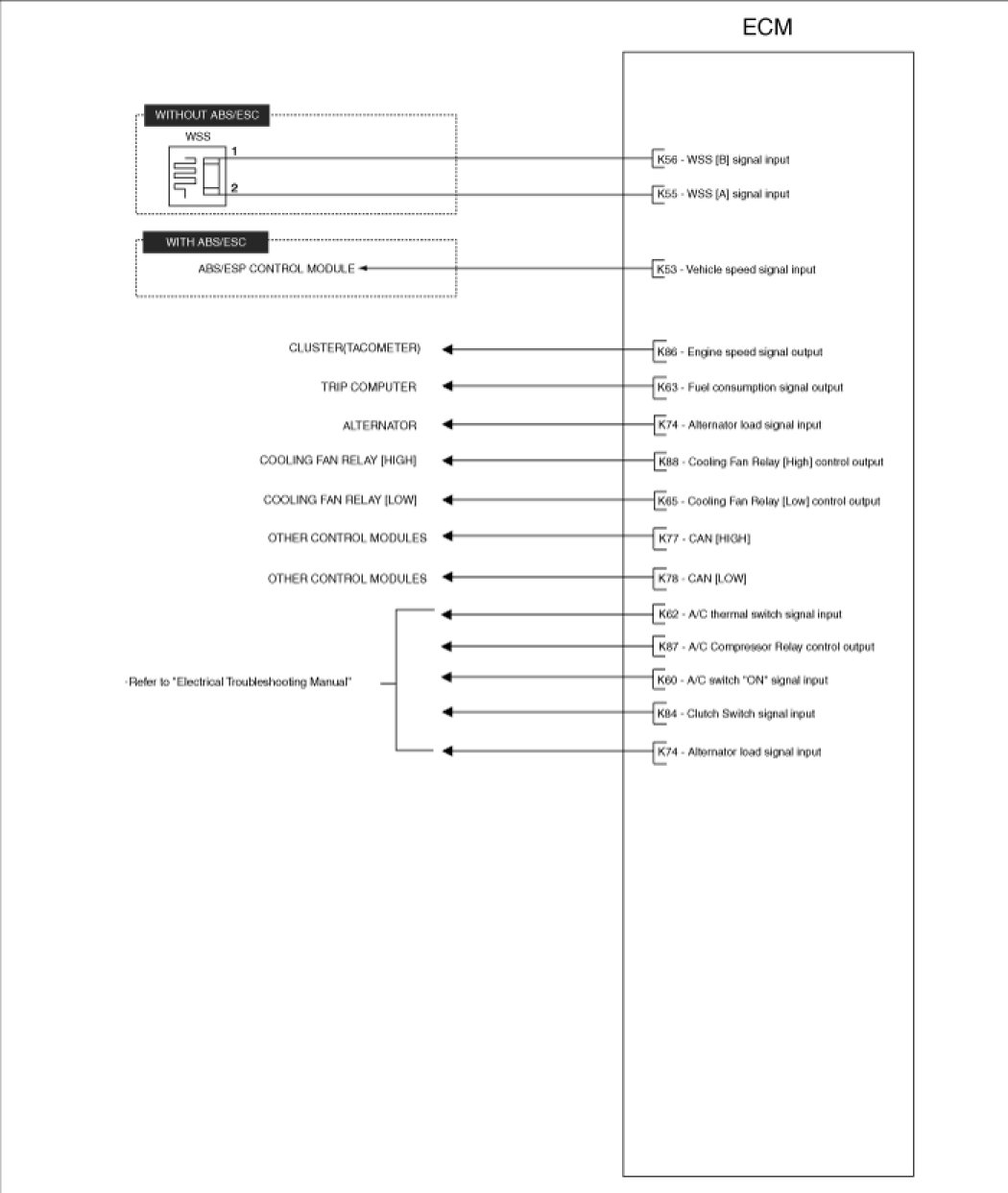

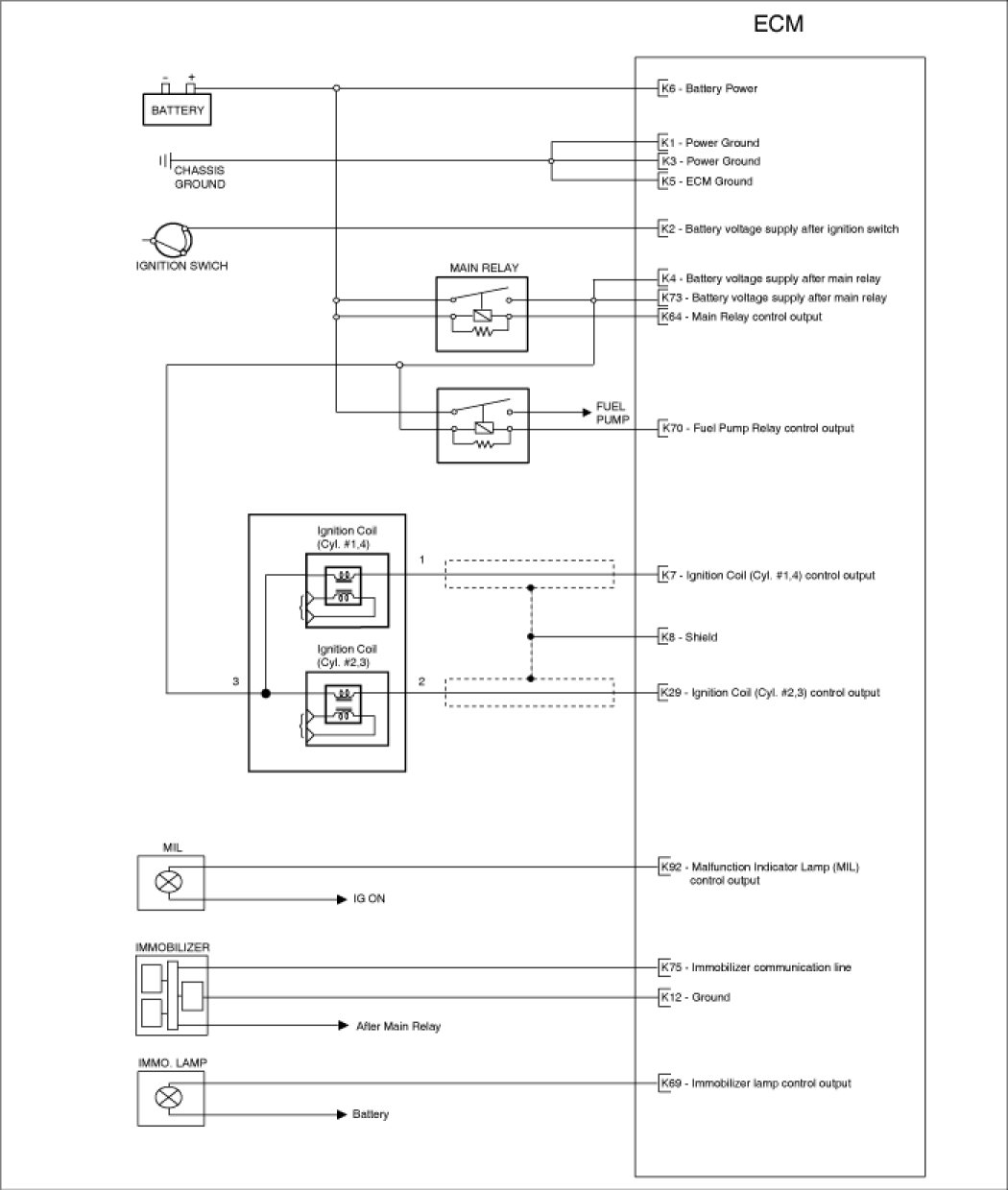

Circuit Diagram
