Steering - EPS ECU Update For DTC C1290

NUMBER
12-ST-001

GROUP
STEERING

MODEL(S)
HD ELANTRA

DATE
FEBRUARY 2011

SUBJECT:
ELANTRA (HD) EPS ECU SOFTWARE UPDATE DTC C1290





Description:
This bulletin provides information related to the EPS ECU software update of some 07~10MY ELANTRA (HD) vehicles which experience a malfunction indicator lamp illuminated with the EPS (Electric Power Steering or Motor Driven Power Steering) system-related DTC C1290: Torque sensor main signal failure.

Applicable Vehicles:
2007~2010MY HD ELANTRA Produced from SOP to November 1, 2010

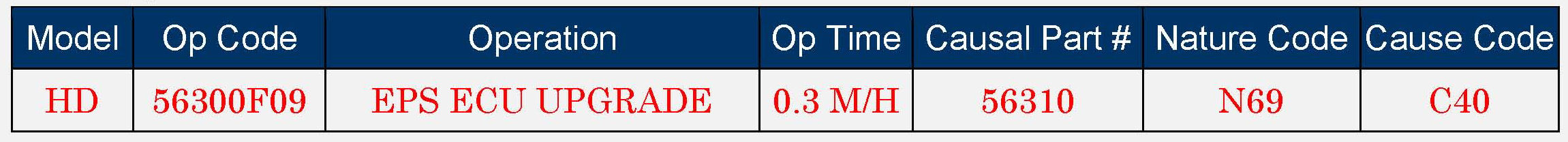

Warranty Information:








Service Procedure:

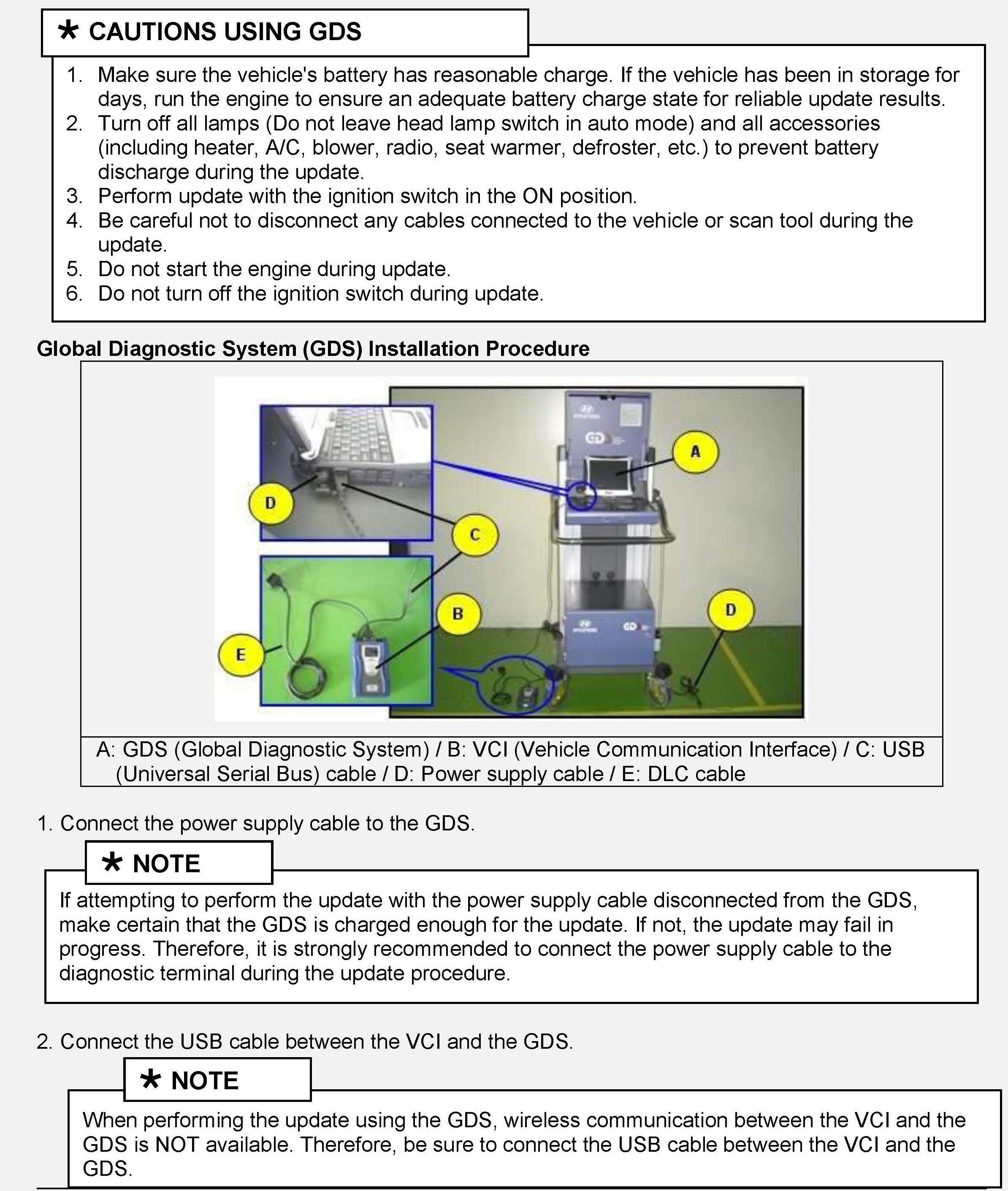

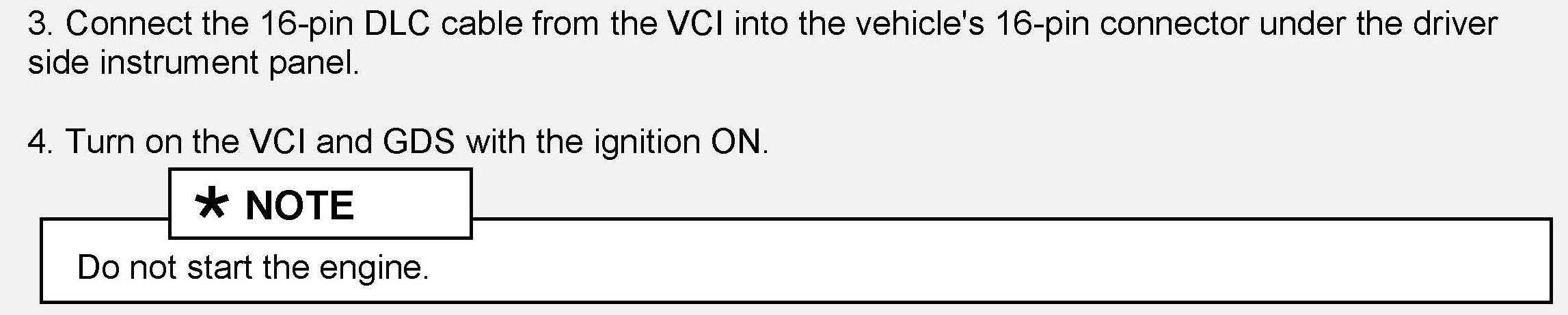

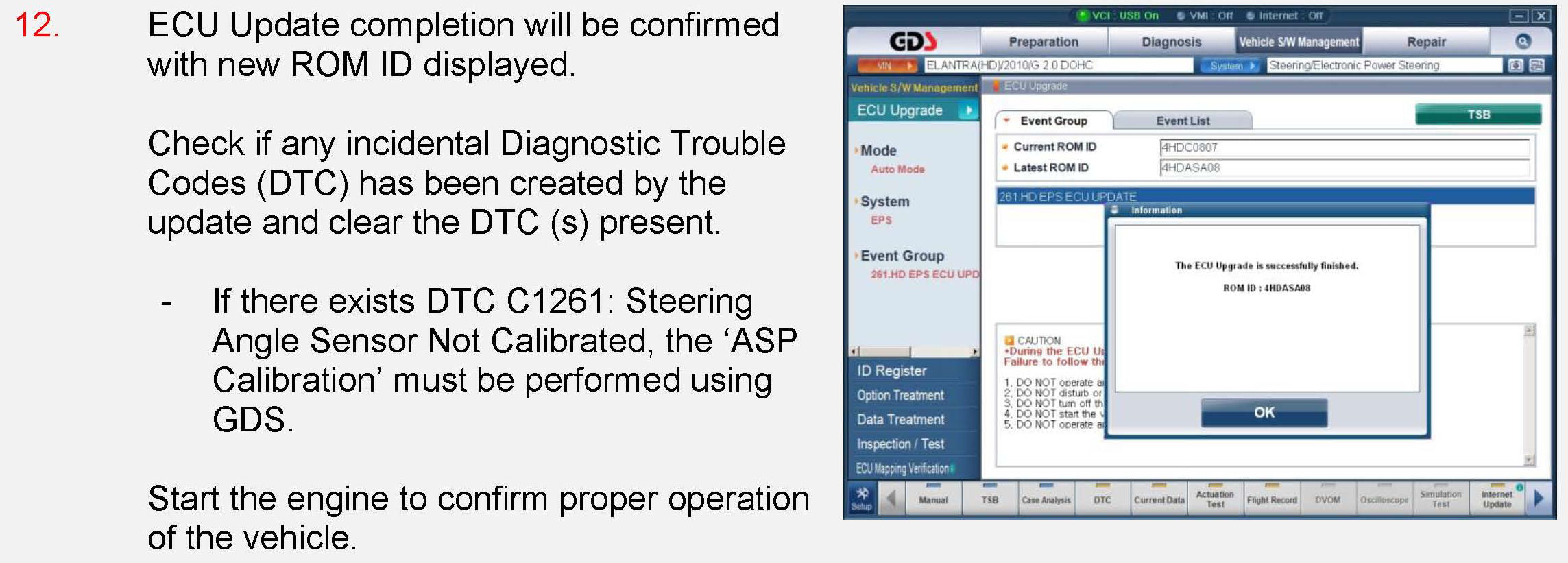

EPS ECU SOFTWARE UPDATE PROCEDURE

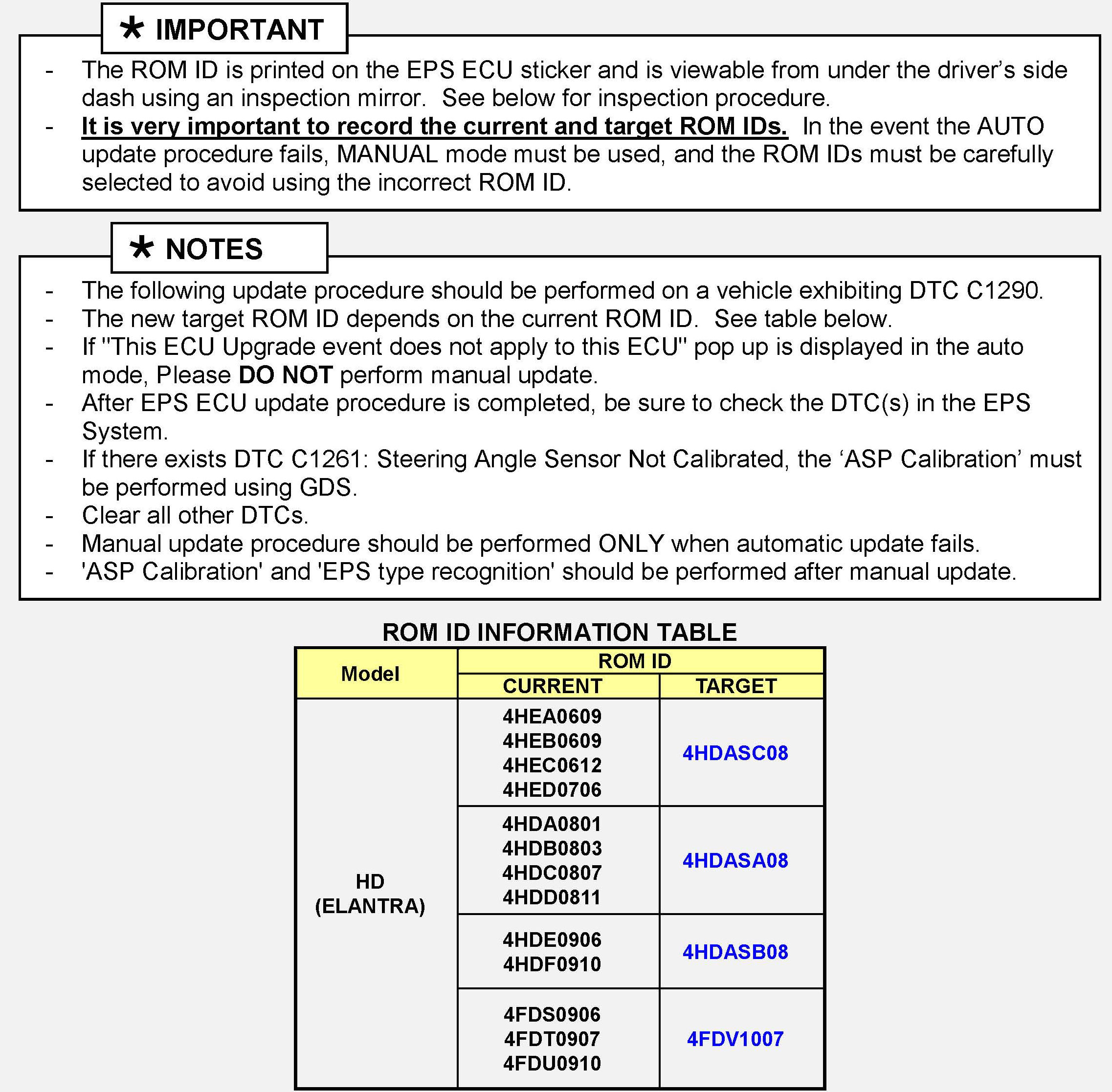

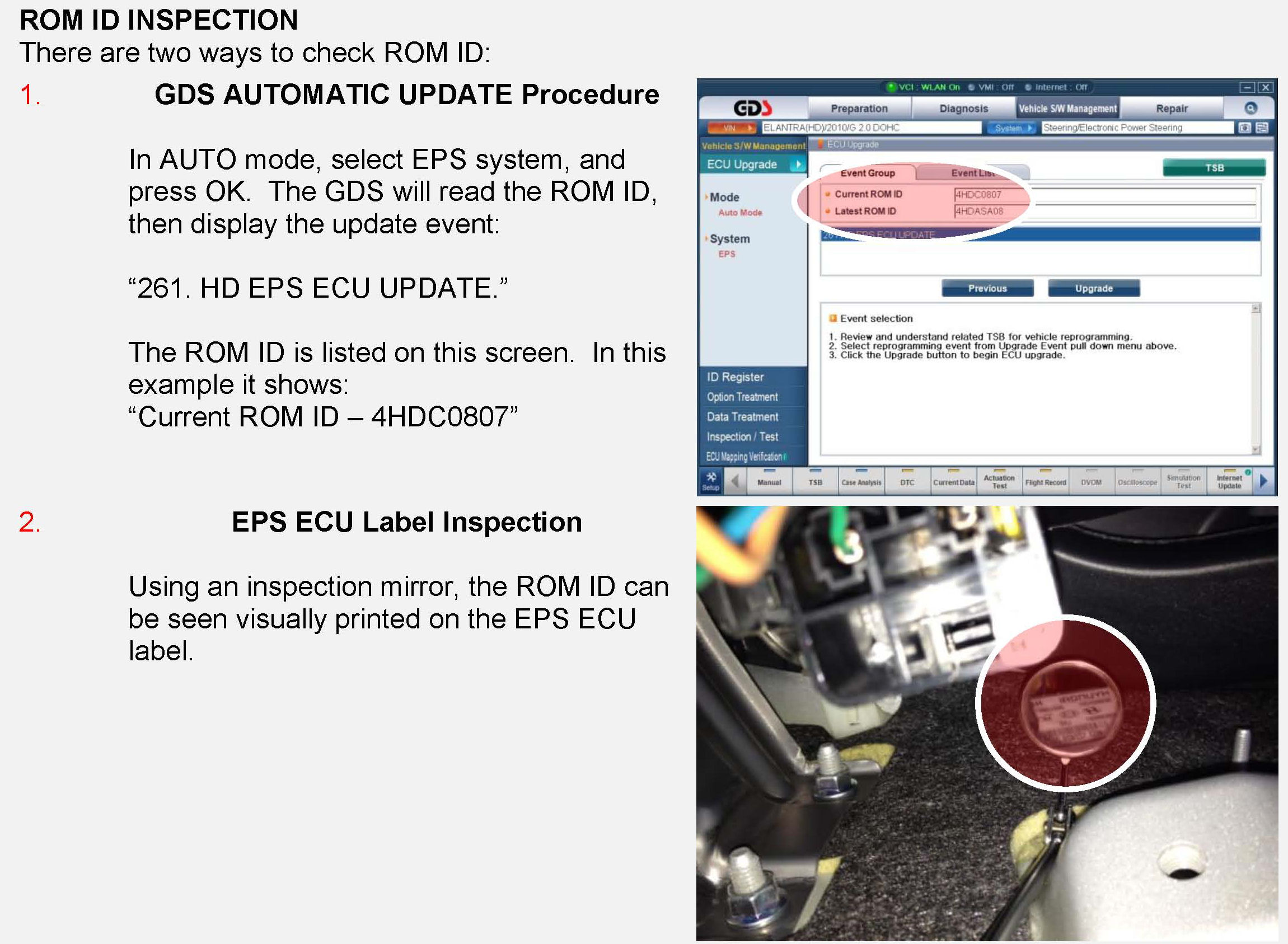

ROM ID INSPECTION

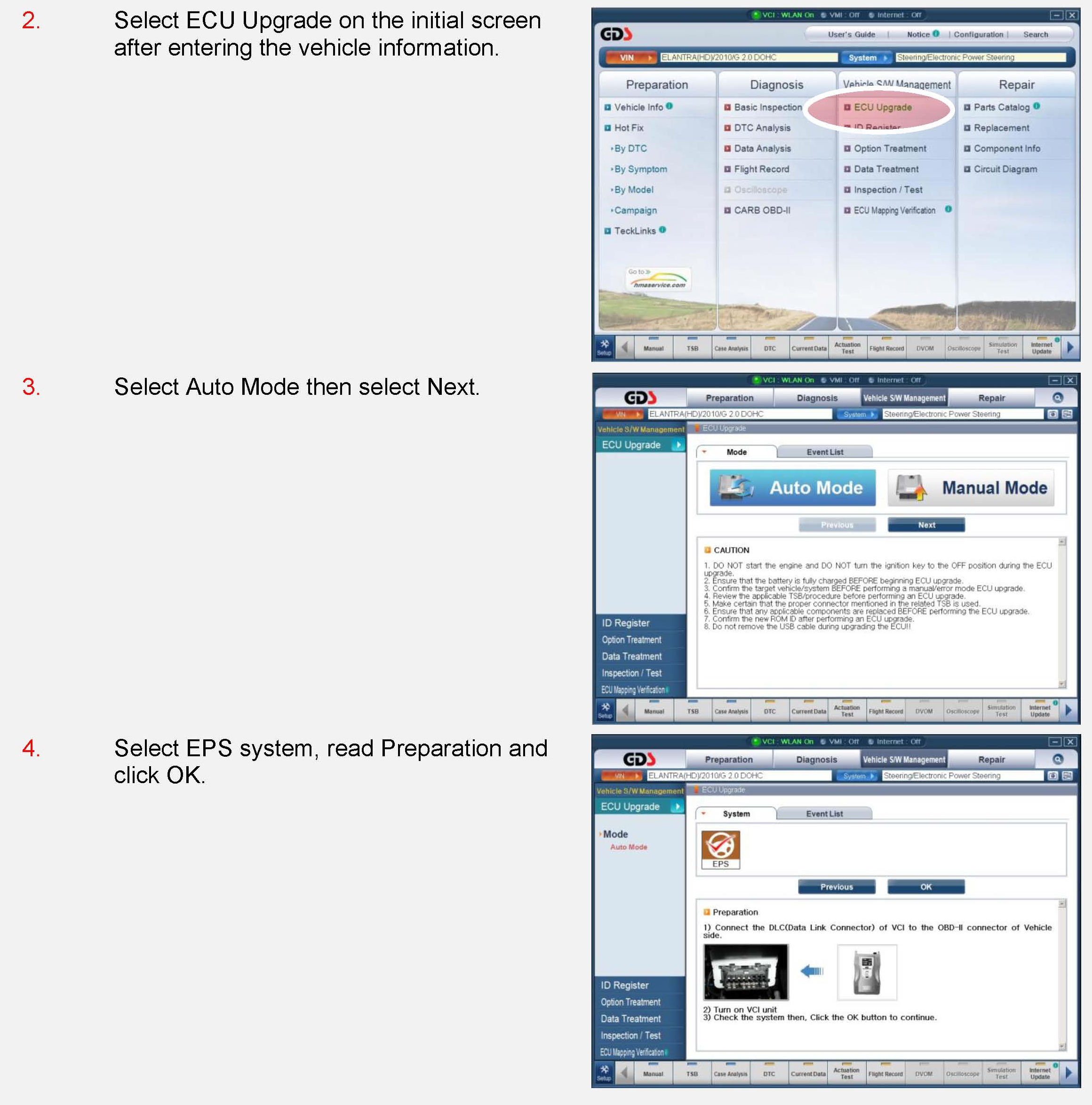

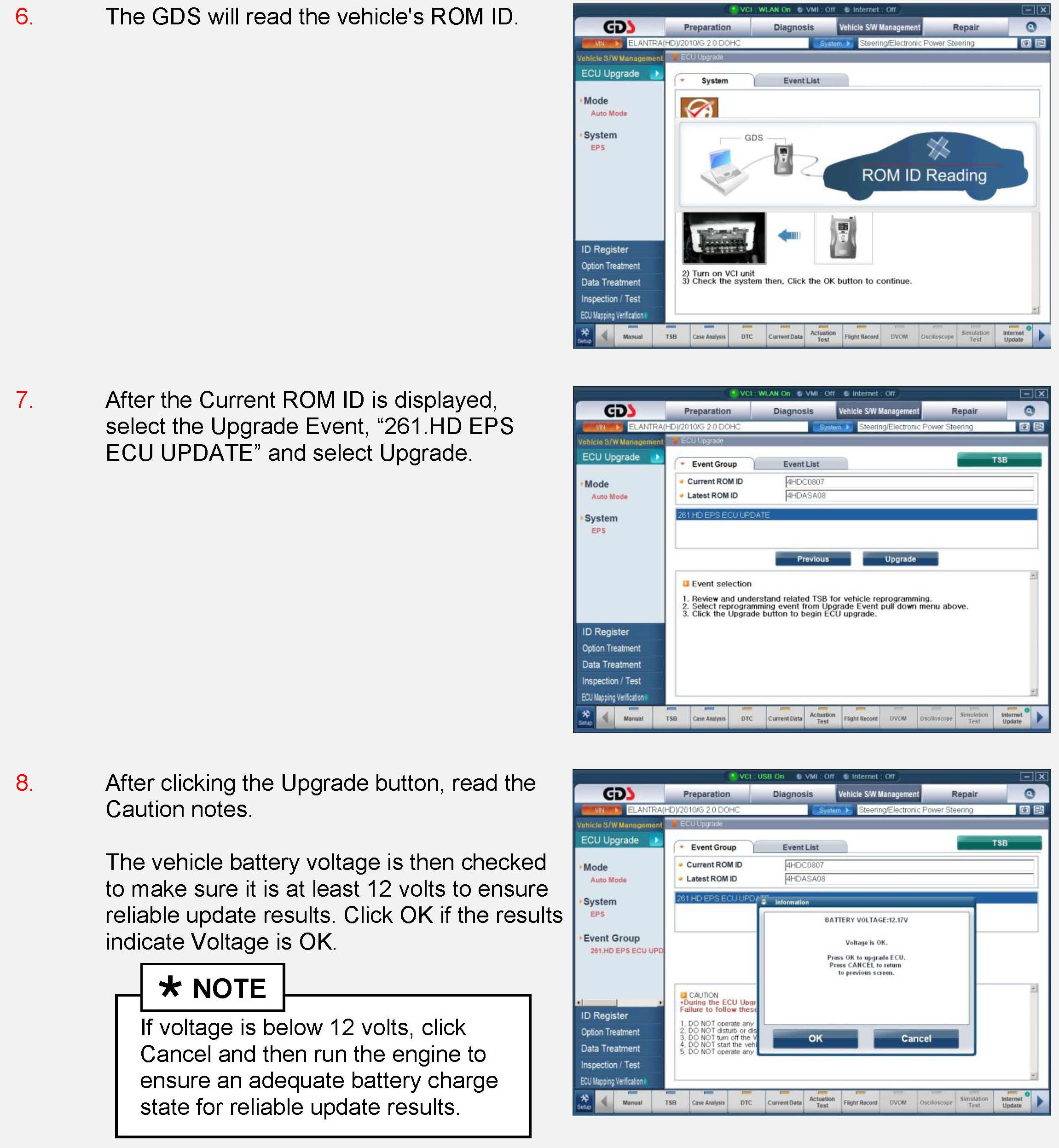

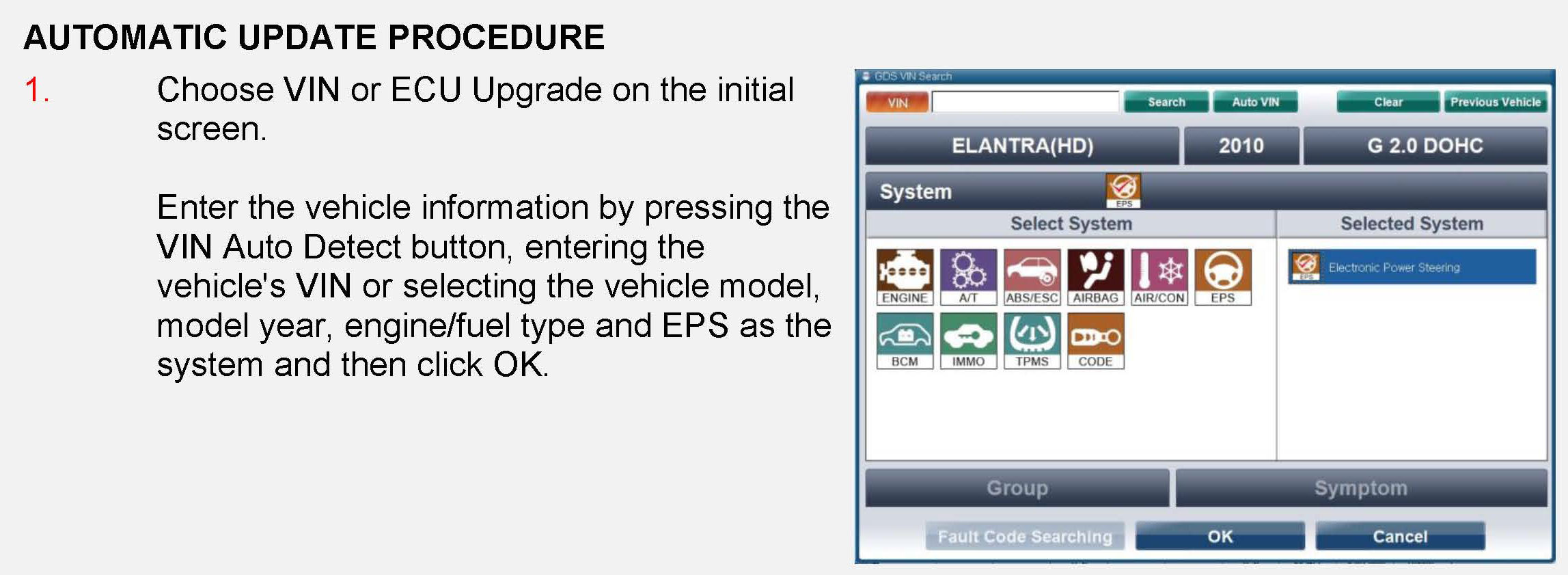

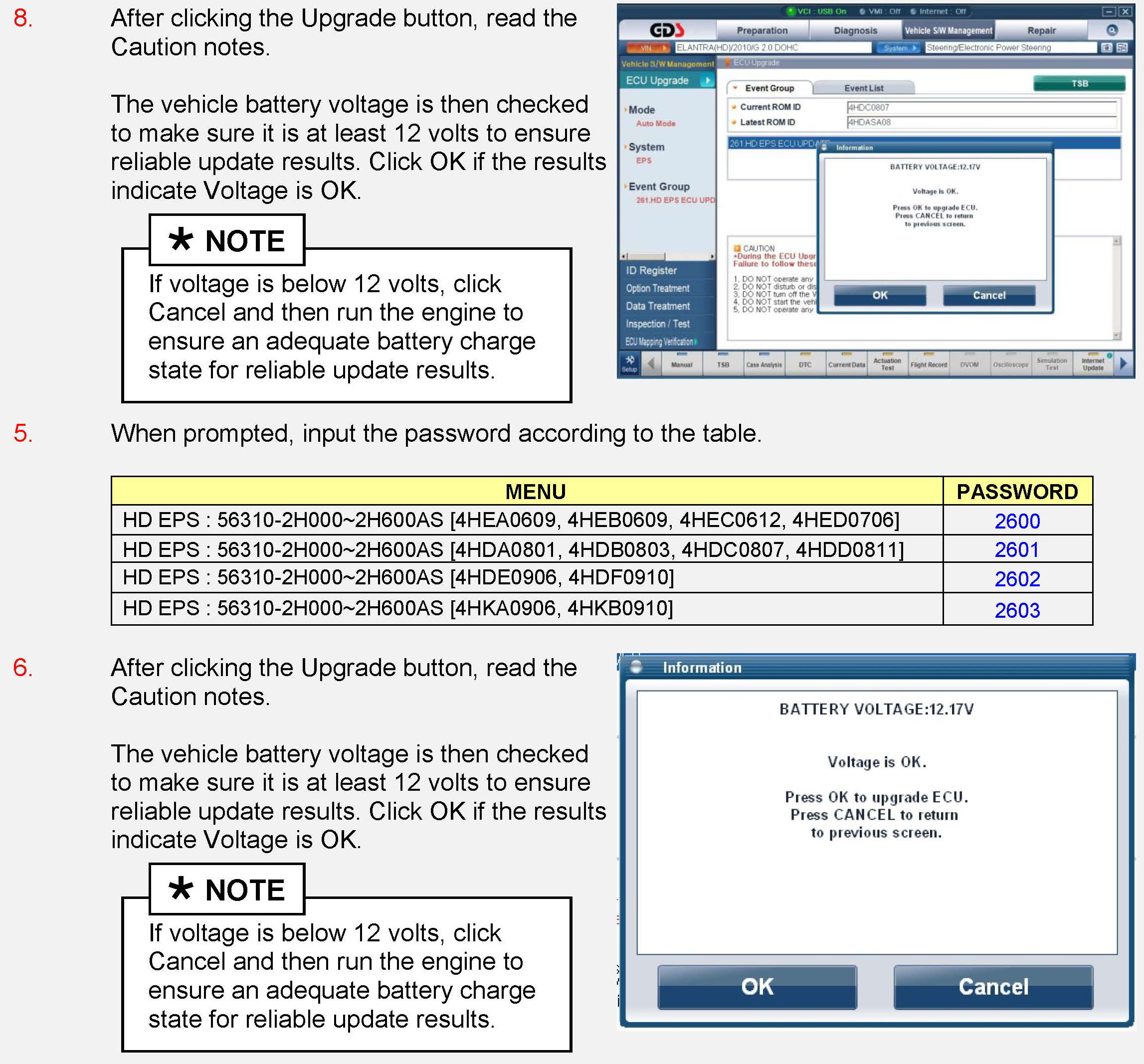

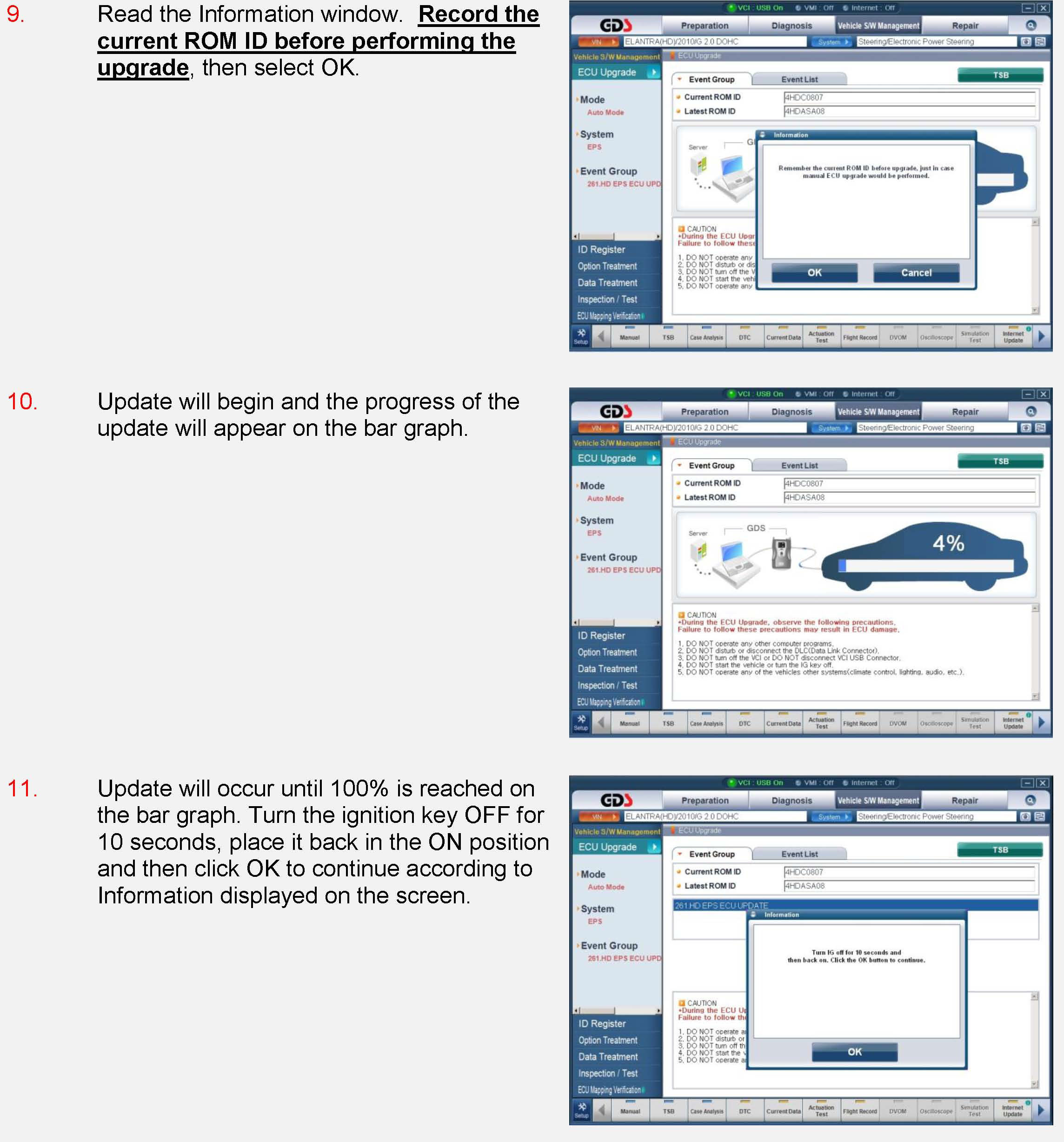

AUTOMATIC UPDATE PROCEDURE

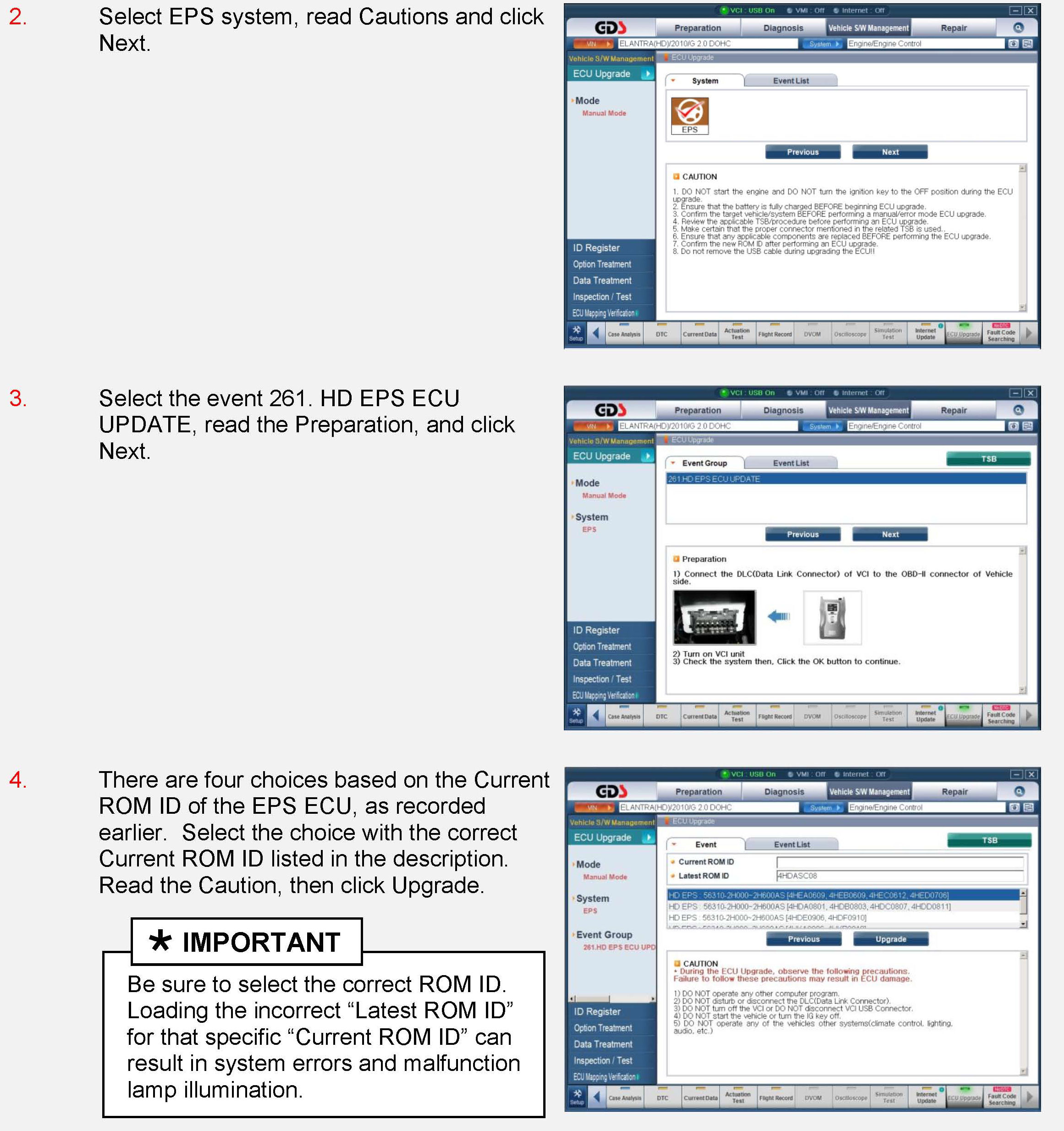

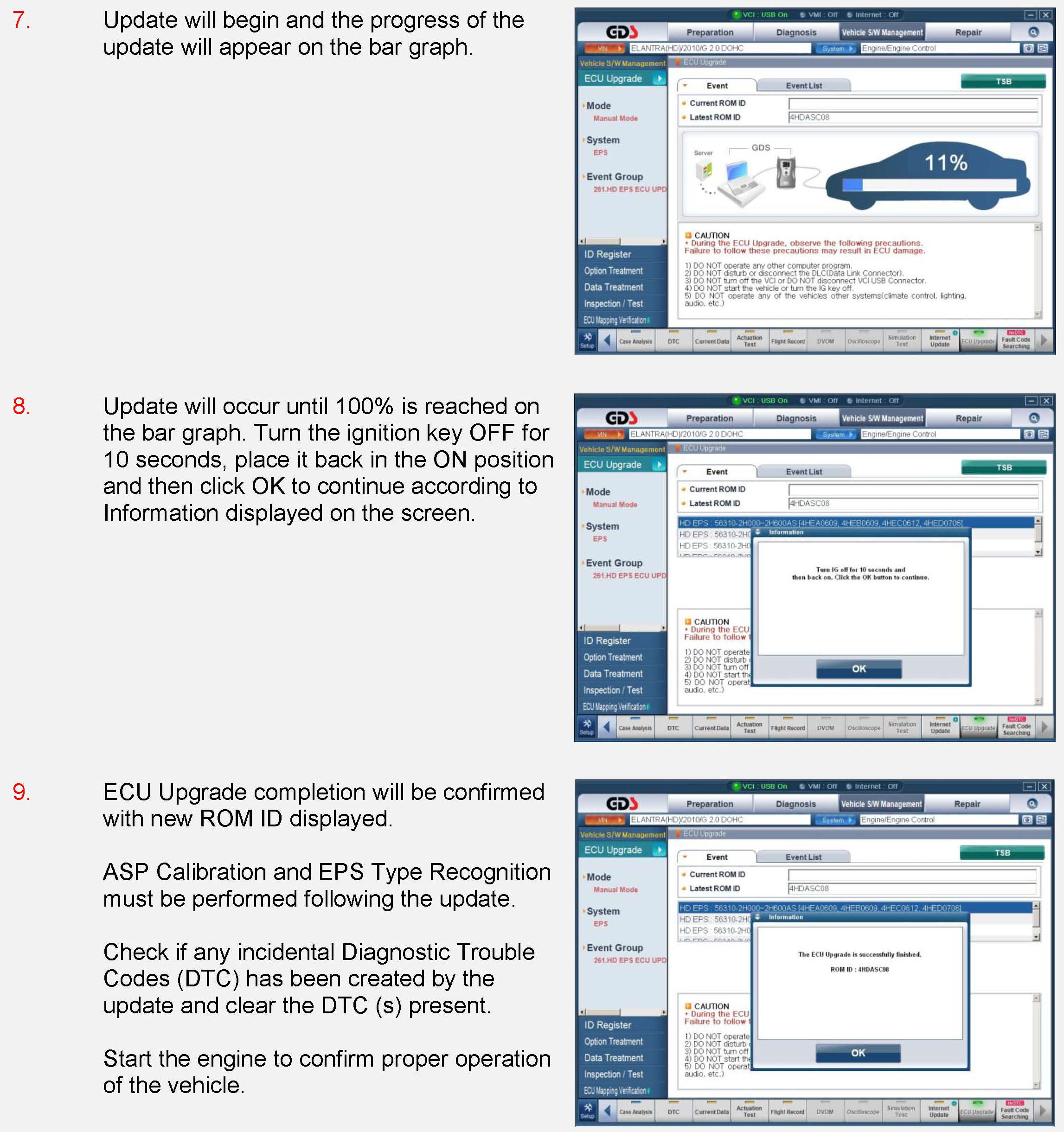

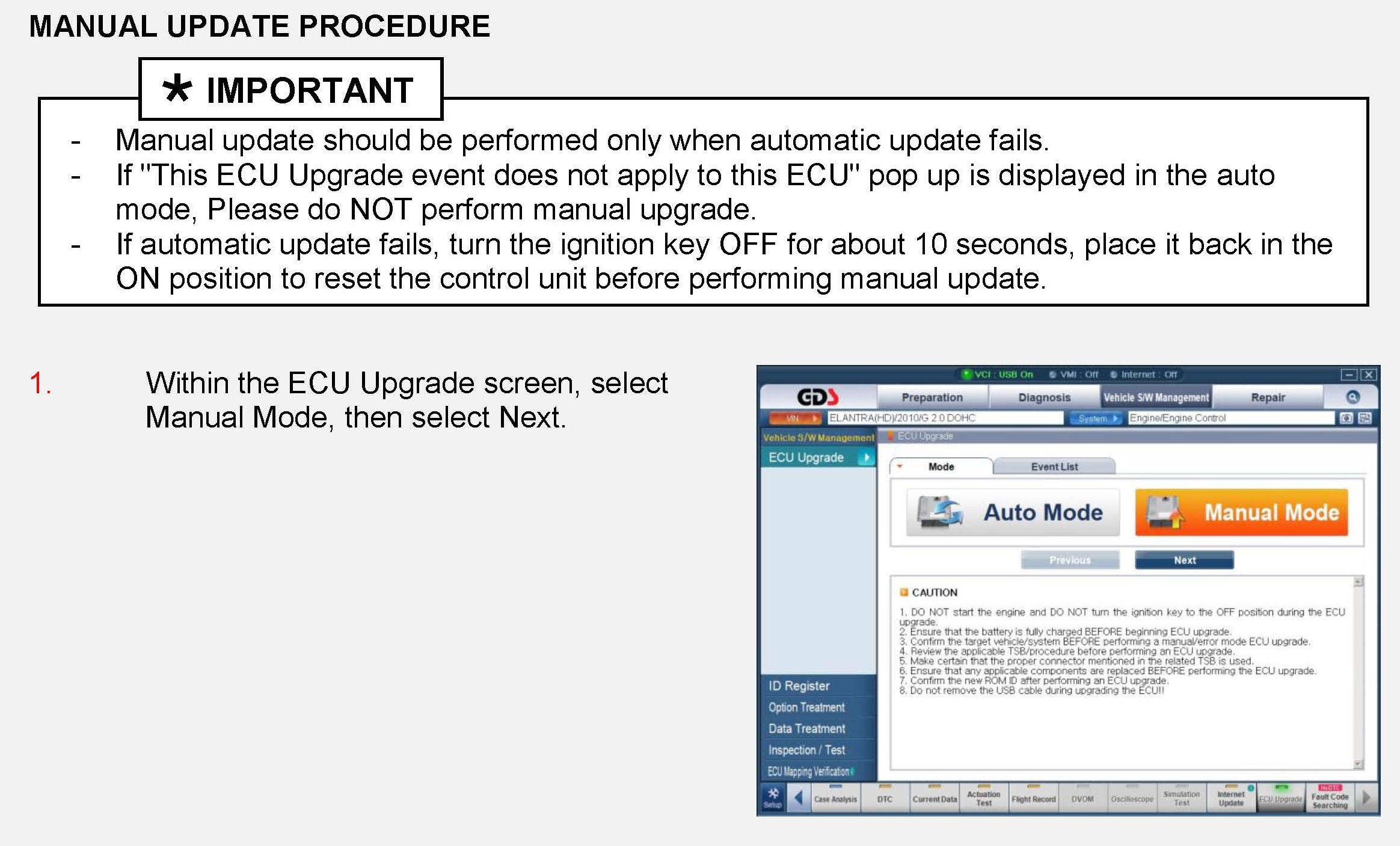

MANUAL UPDATE PROCEDURE

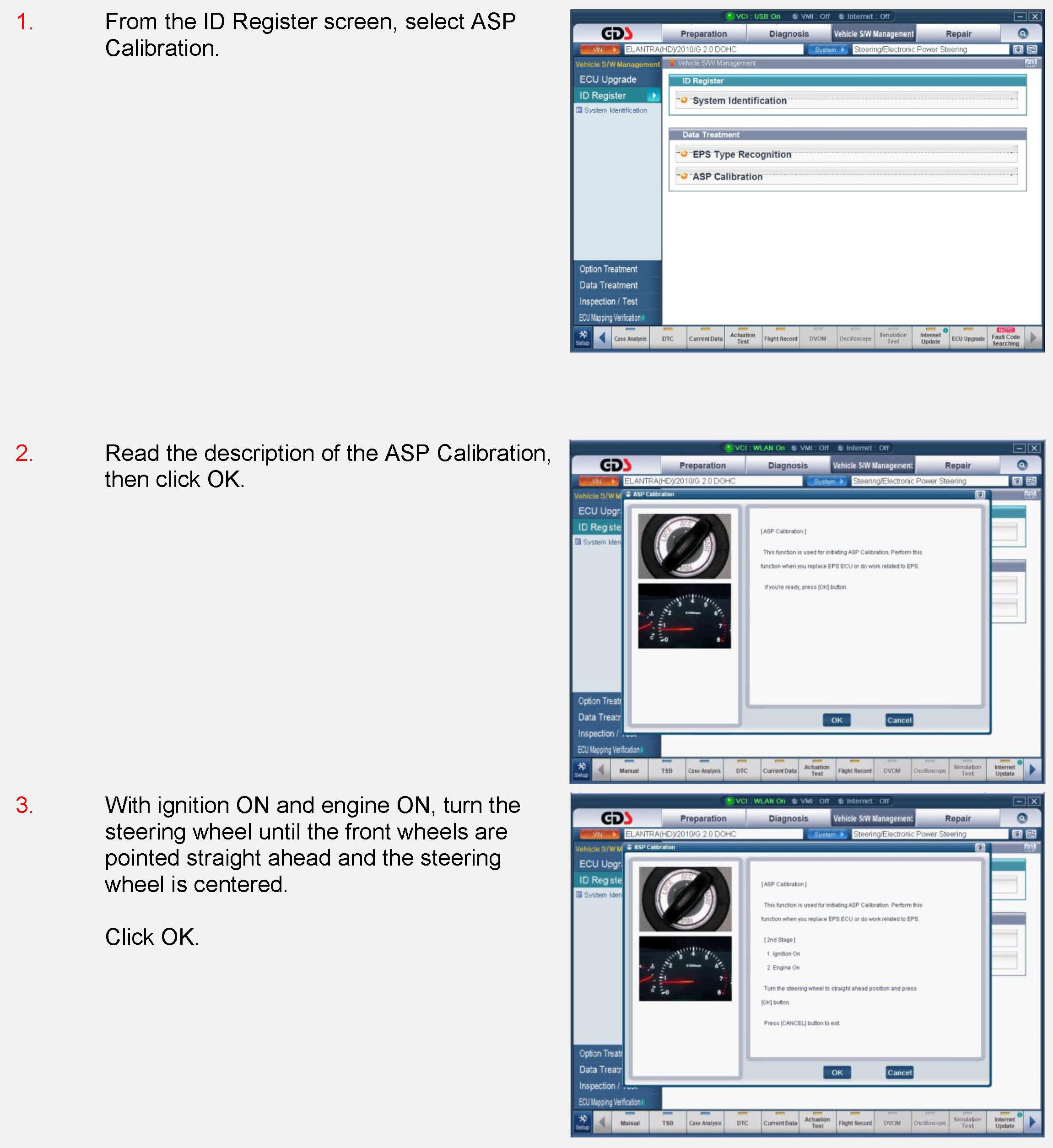

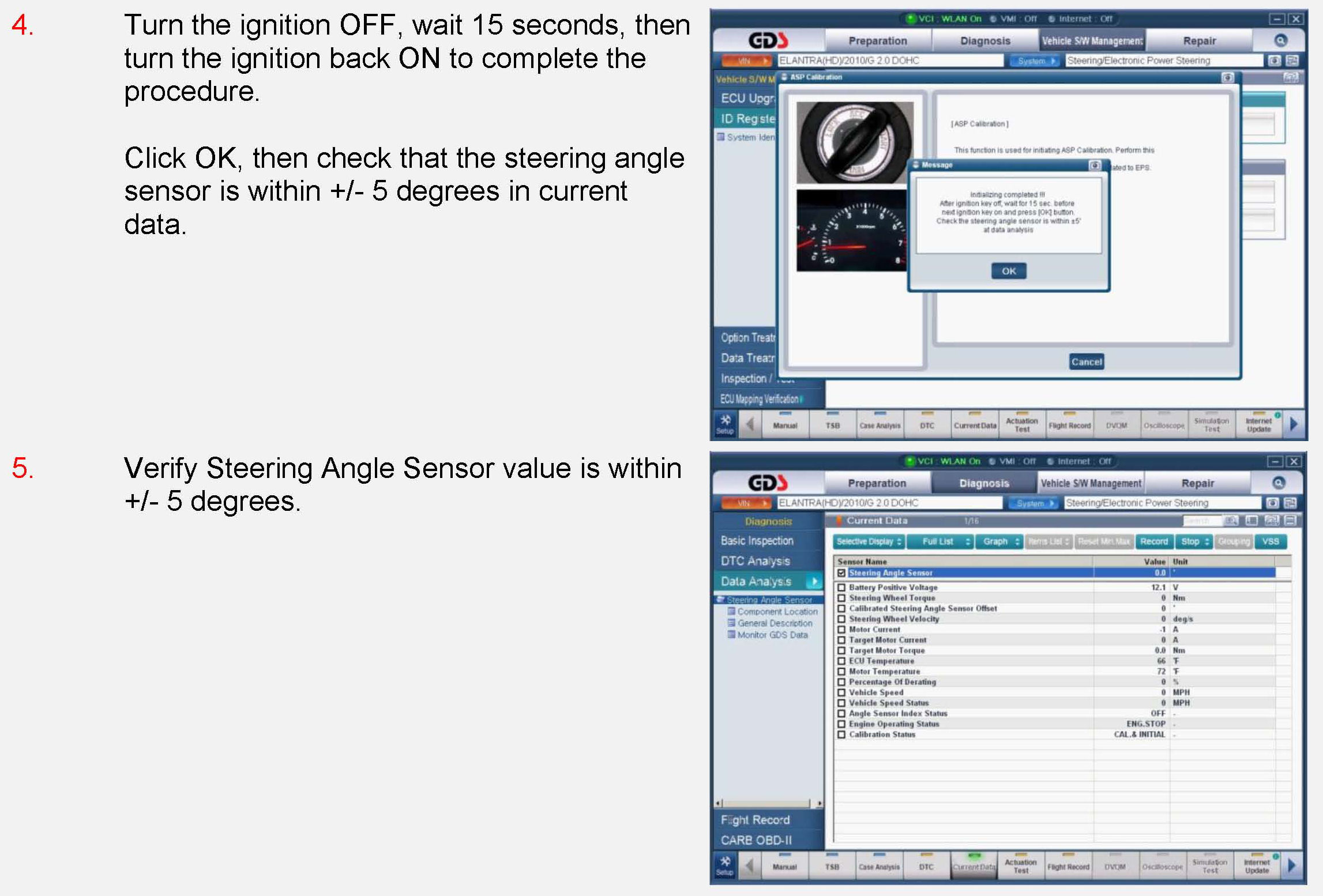

ASP Calibration Procedure

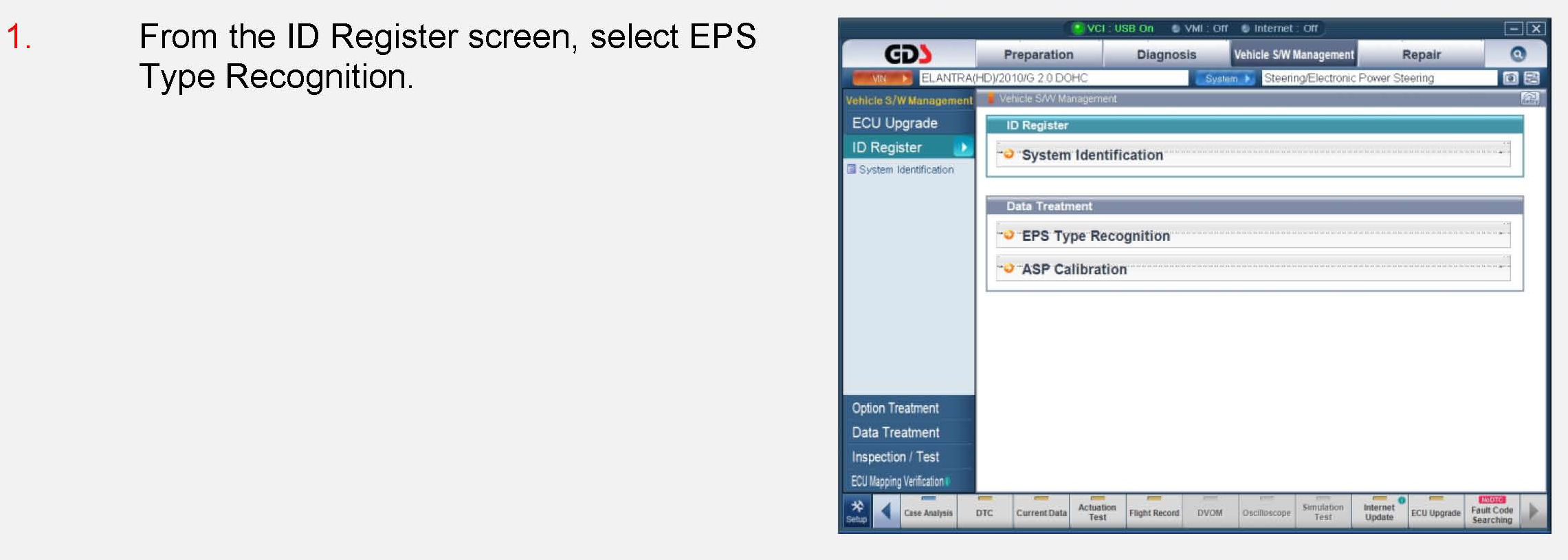

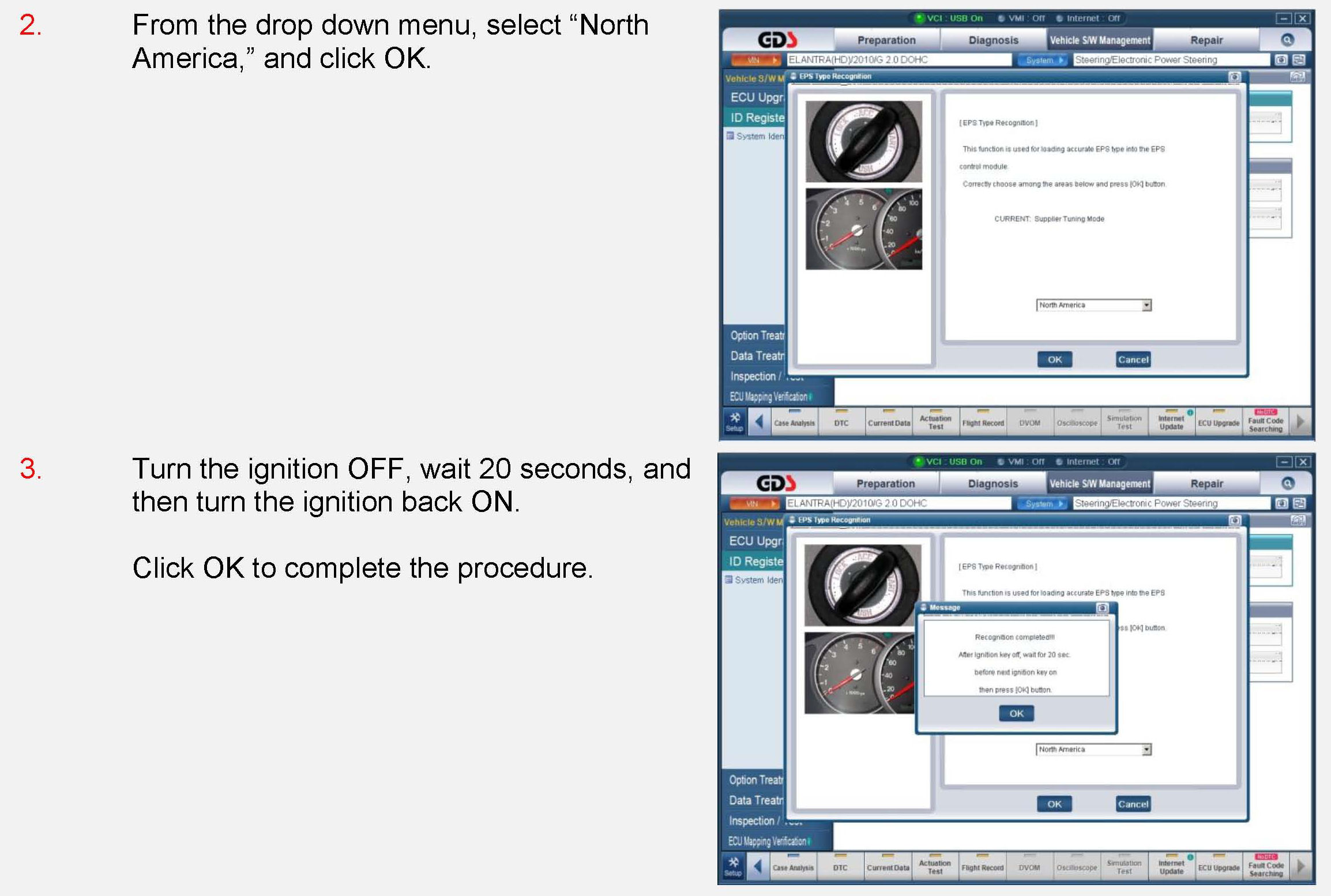

EPS Type Recognition Procedure
