Alarm Module: Service and Repair
Removal 1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad.
.
3.

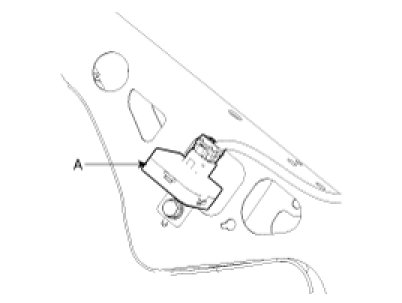

Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a nut.
Installation 1.
Install the immobilizer control unit after connecting the unit connector.
2.
Install the crash pad.
