Trip Computer: Service and Repair
Removal 1.
Disconnect the negative (-) battery terminal.
2.

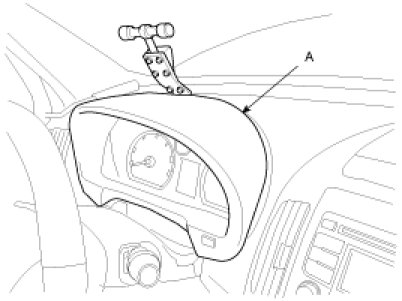

Remove the cluster facia panel (A) after loosening 2 screws.
3.

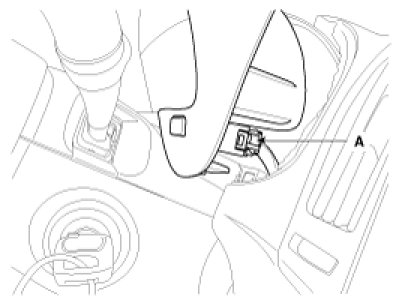

Disconnect the
trip computer connector (A).
4.
Remove the trip computer switch (A) from the cluster facia panel after loosening 2 screws.
Installation 1.
Install the
trip computer to the cluster facia panel.
2.
Install the cluster facia panel.
