Identification Number Locations

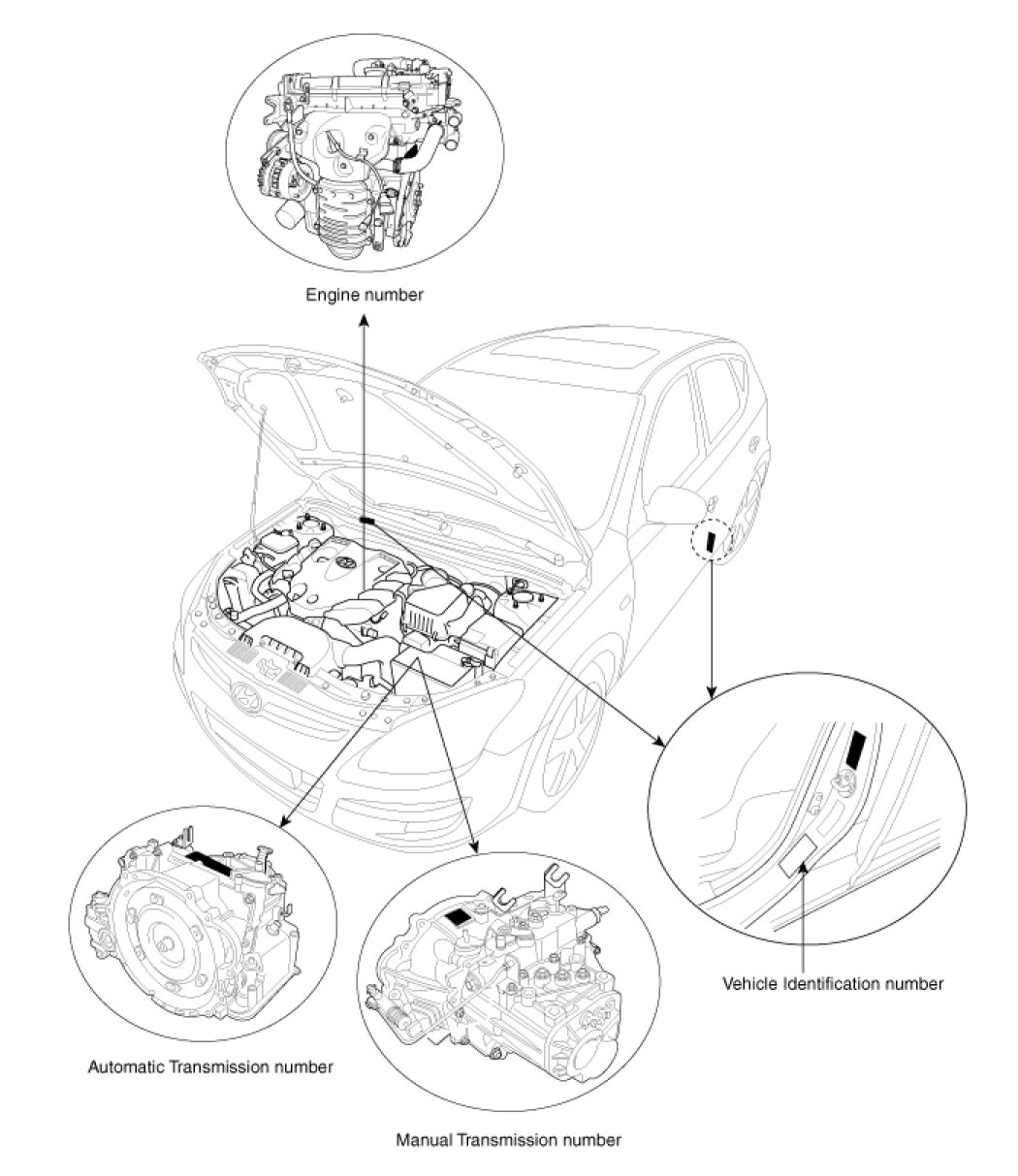

Identification Number Locations





Identification Number Description

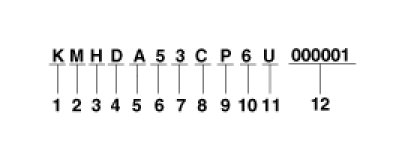

Vehicle Identification Number




1. Geographic zone
- K : Korea
2. Manufacturer
- M : Hyundai motor company
3. Vehicle type
- H : Passenger
4. Vehicle line
- D : FD
5. Model & Series
- A : STANDARD (L)
- B : DELUXE (GL)
- C : SUPER DELUXE (GLS)
6. Body type
- 4 : Sedan, 4 Door
- 5 : Sedan, 5 Door
- 8 : Wagon
7. Restraint system
- 3 : Drive Side : active belt & airbag,
Passenger side : active belt or passive belt
- 4 : Both Sides : active belt & airbag.
- 5 : Depowered : airbag.
- 6 : Advanced airbag or depowered airbag with suspension
8. Engine type
- E : Gasoline 2.0 DOHC
9. Check digit
- Check digit : 0 - 9, x
- P : Left hand driver
- R : Right hand driver
10. Production year
- 7 : 2007, 8 : 2008, 9 : 2009
11. Plant of production
- U : Ulsan (Korea)
12. Vehicle production sequence number
- 000001 - 999999
