Transmission Identification Number

Transmission Identification Number

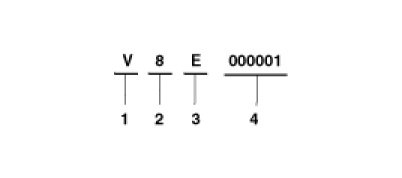

Manual

1. Model
- V : M5CF2
2. Production year
- 7 : 2007, 8 : 2008, 9 : 2009
3. Gear ratio
- E : 4.188
4. Transaxle production sequence number
- 000001 - 999999

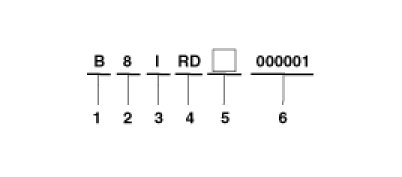

Automatic

1. Model
- B : A4CF2
2. Production year
- 7 : 2007, 8 : 2008, 9 : 2009
3. Gear ratio
- I = 4.121
4. Detailed chassification
- RU/RD : β - 2.0
5. Spare
6. Transaxle production sequence number
- 000001 - 999999
