Front Fender: Service and Repair
Replacement 1.

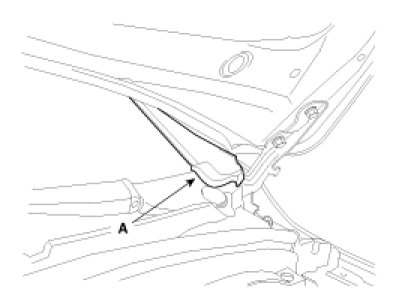

Remove the
hood side seal strip (A).
2.

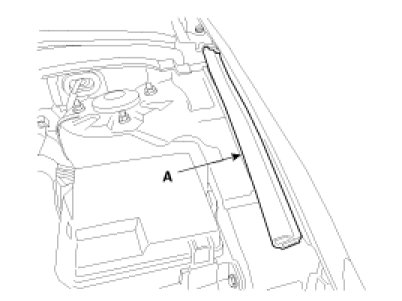

Remove the windshield side molding (A).
3.
Remove the
fender side lamp (A).
4.

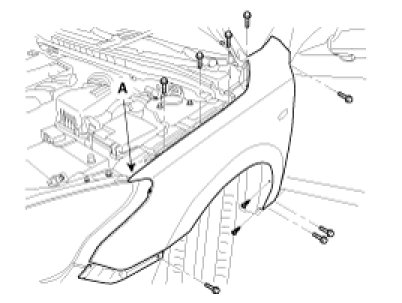

Remove the
fender mounting bolts (A).
5.

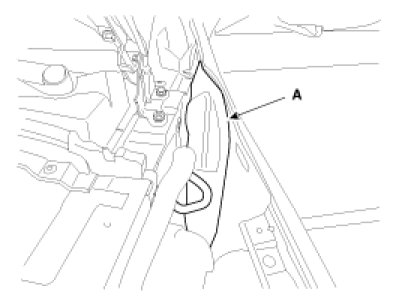

Remove the insulator pad (A).
6.

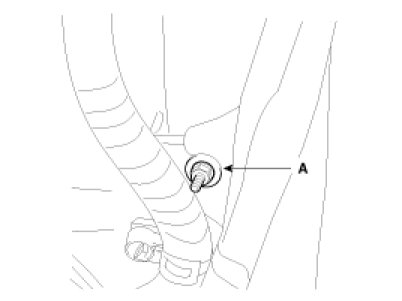

After loosening the mounting nut (A), remove the
fender.
7.
Installation is the reverse of removal.
