Guide Assembly Replacement
Guide Assembly Replacement 1.
Remove the sunroof assembly.
2.

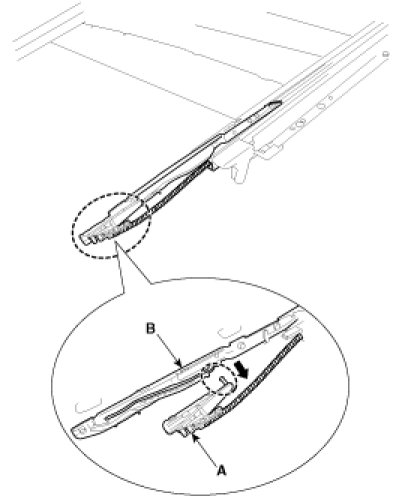

Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.
3.

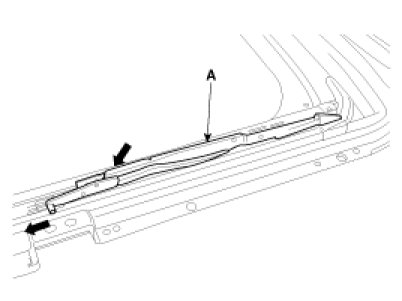

Remove the guide (A) and slide (B).
4.
Installation is the reverse of removal.
NOTE: -

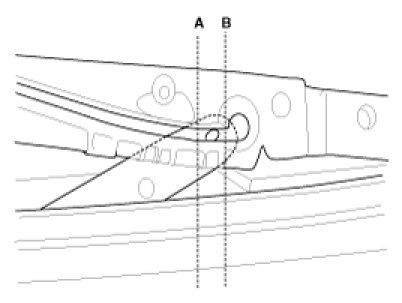

Make sure to align the slide with the center of"A" and "B"
-
Make sure to initialize the motor.
