Cruise Control Servo: Service and Repair
Removal 1.
Remove the battery negative and the cruise control cable from the throttle assembly by turning the throttle lever to the full-open position.
2.

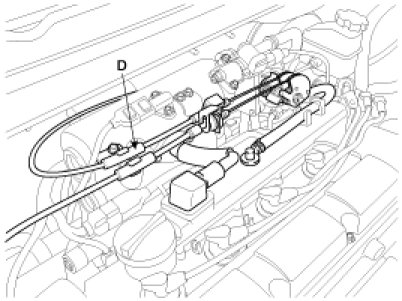

Remove the auto-cruise control cable(D).
3.

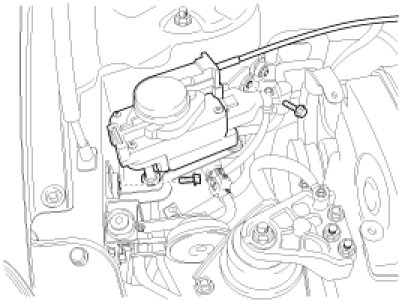

Remove the actuator and unit assembly(A) mounting bolt.
4.
Installation is the reverse order of removal.
