Repair Procedures





Removal

1. Disconnect the negative (-) battery terminal.

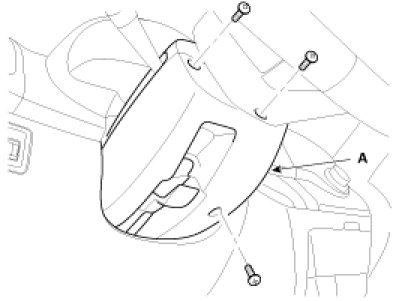

2. Remove the steering column upper and lower shrouds(A) after removing 3 screws.
.

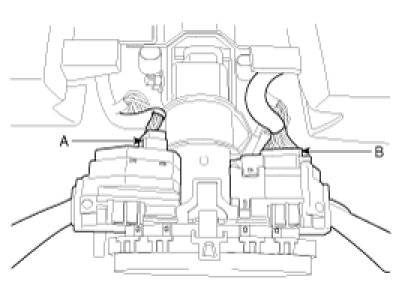

3. Disconnect the light switch connector (A) and the wiper switch connector (B).

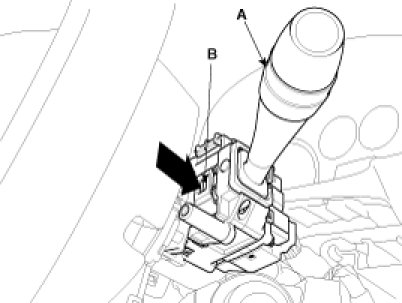

4. Remove the lighting switch (A) by pushing the lock pin (B).

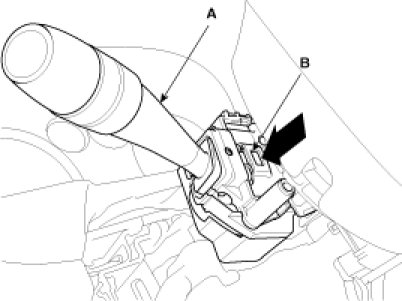

5. Remove the wiper switch (A) by pushing the lock pin (B).






Installation

1. Install the wiper switch then connect the lighting switch connector.
2. Install the lighting switch then connect the wiper switch connector.
3. Install the steering column upper and lower shrouds.
