Axle Shaft Assembly

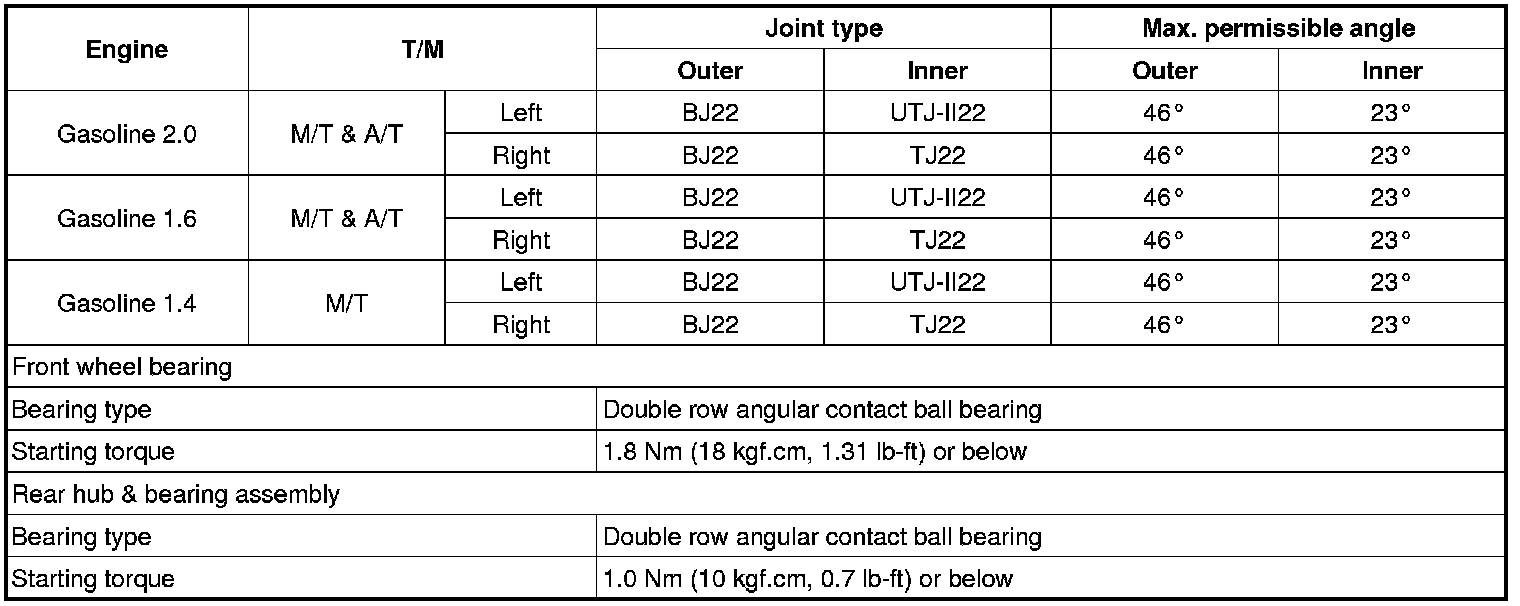

SpecificationDriveshaftBJ : Birfield Joint
TJ : Journal Tripod Joint
SFJ : Shudderless Free-ring Joint
UTJ : U-TYPE Tripod Joint
Inner : On transaxle side
Outer : On tire side

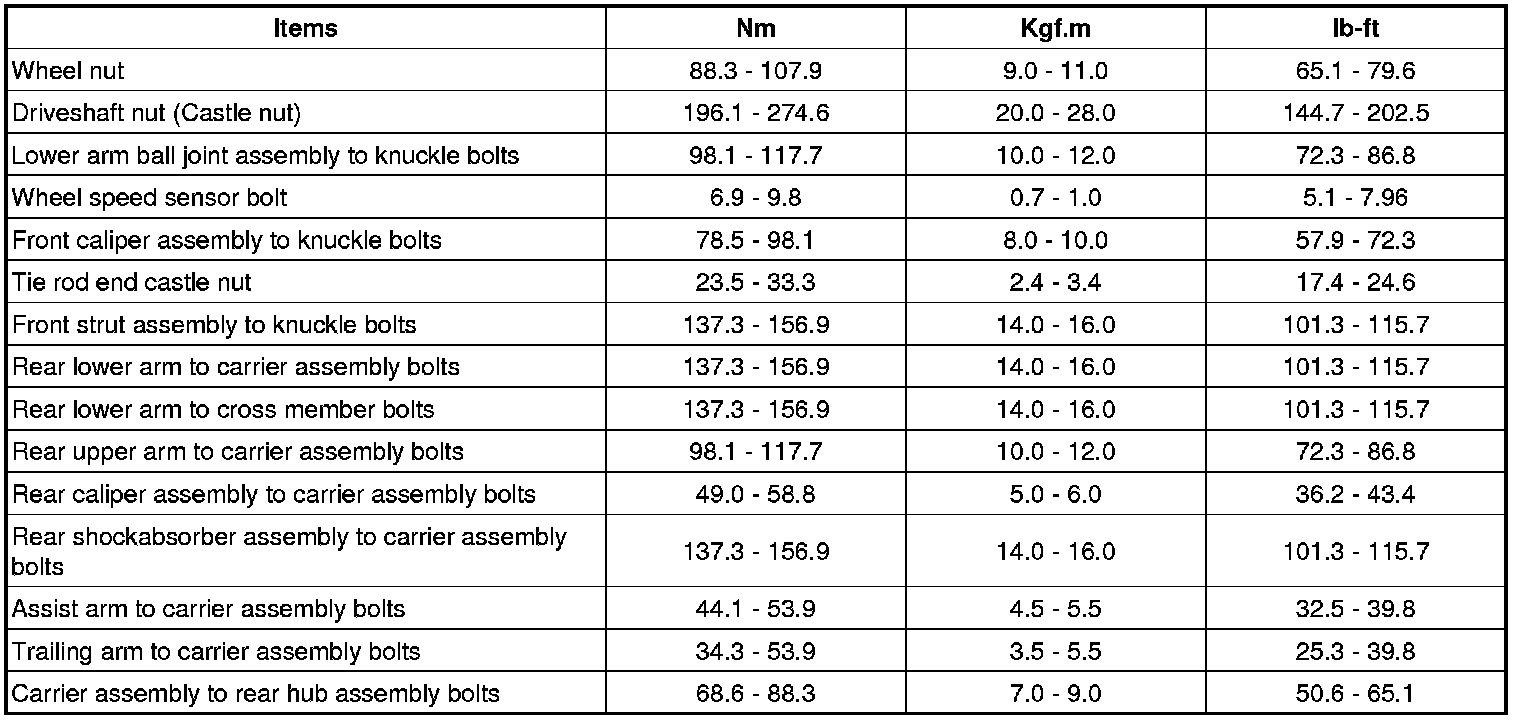

Tightening TorqueCAUTION:Replace self-locking nuts with new ones after removal.
