Crankshaft

Crankshaft Journal Diameter & Limits

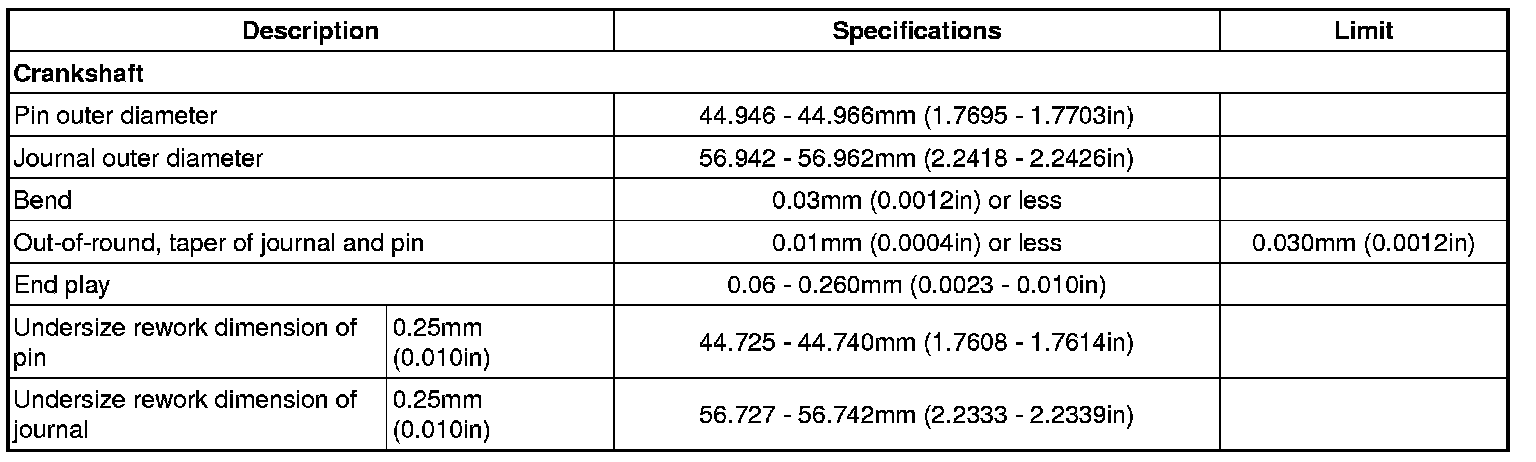

Crankshaft Specifications

Reinstall the bearings and caps, then torque the bolts.

Tightening torque 27.5 - 31.4Nm (2.8 - 3.2kgf.m, 20.3 - 23.11lb-ft) + 60° ~ 64°

Check crankshaft end play

Standard end play 0.06 - 0.26mm (0.0023 - 0.010in)
Limit 0.30mm (0.0118in)

Main journal diameter 56.942 - 56.962mm (2.2418 - 2.2426in)
Crank pin diameter 44.946 - 44.966mm (1.7695 - 1.7703in)
