Water Pump





Water Pump

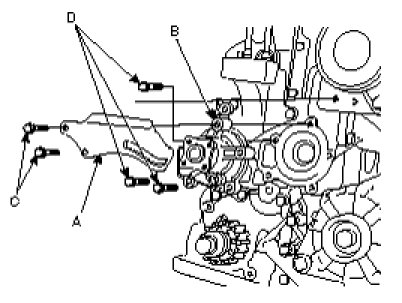

Install the water pump (B) and a new gasket with the 3 bolts(D).

Tightening torque 19.6 - 26.5 Nm (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)
