Ignition Switch: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the steering column upper and lower shrouds.
.

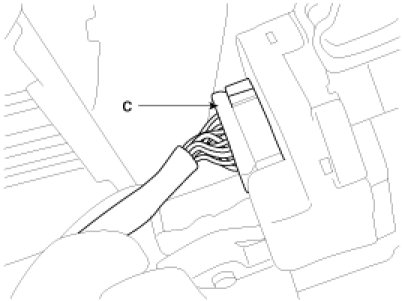

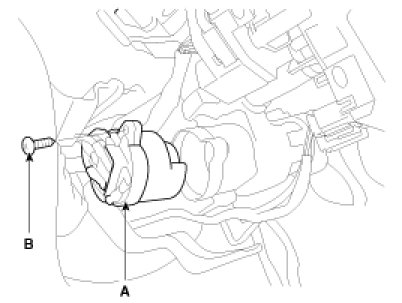

3. Remove the ignition switch (A) after loosening the screw (B) with IG ON and disconnecting the 6P connector (C).

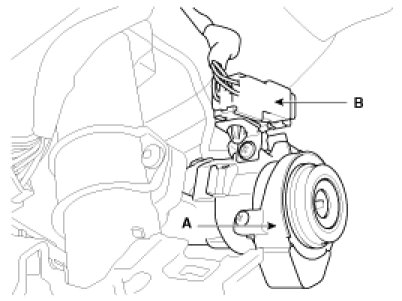

4. Remove the door warning switch and key illumination lamp (A) after loosening the screw and disconnecting the 6P connector (B).

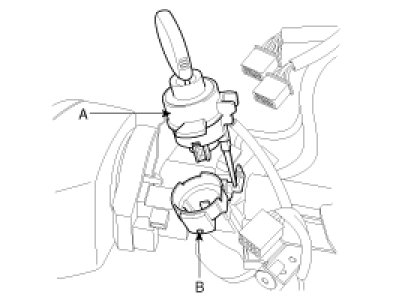

5. If it is necessary to remove the key lock cylinder (A), Remove the key lock cylinder after pushing lock pin (B) with key ACC.






Installation

1. Install the key lock cylinder.
2. Install the door warning switch and key illumination lamp.
3. Install the ignition switch.
4. Install the steering column cover.
