ASP Calibration Procedure





ASP calibration procedure
1. Plug DLC cable from a scan tool into the vehicle's data link connector located under the instrument panel on the driver's side.
2. Turn the ignition switch ON position.
3. Turn the steering wheel so that the front wheel can face straight ahead.

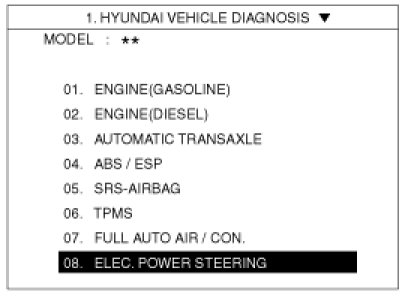

4. Select a model and ELECTRIC POWER STEERING.

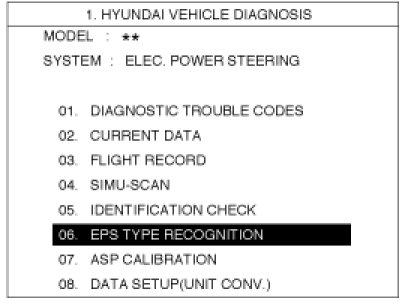

5. Select the ASP CALIBRATION and press ENTER.

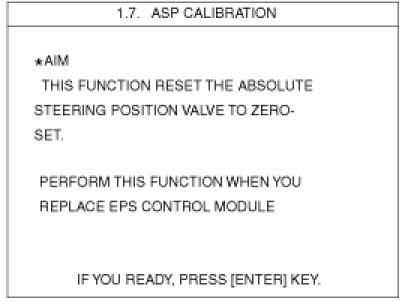

6. Check the massage on the screen and press ENTER'.

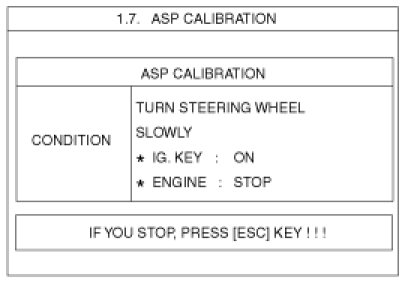

7. Confirm the vehicle condition (IG On) and then turn the steering wheel until massage changes to the next screen.




8. When the massage is displayed on the screen as follows, turn the steering wheel so that the front wheel can face straight ahead and then press ENTER.

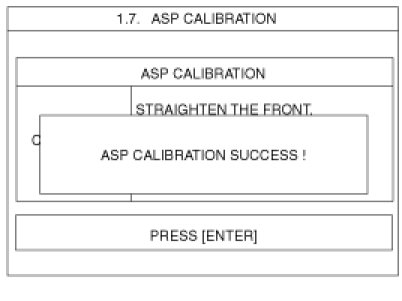

9. When the calibration is completed, the massage will be displayed on the screen as follows.
