Wiper Relay: Service and Repair
Removal 1.
Disconnect the negative (-) battery terminal.
2.

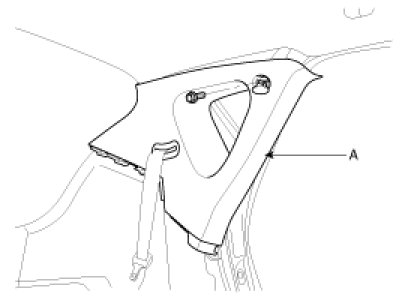

Remove the rear left pillar lower trim (A).
3.

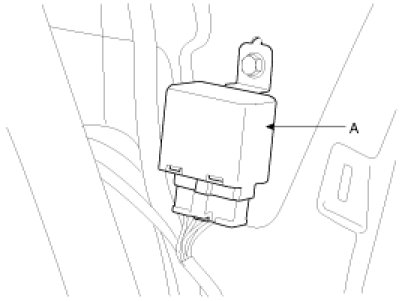

Remove the rear
wiper relay (A) after loosening a bolt and disconnecting the rear wiper relay connector.
Installation 1.
Install the rear
wiper relay.
2.
Install the rear left pillar lower trim.
