Wiper Relay: Testing and Inspection
Inspection 1.
Washer interlocking must conform to the mode shown in figure.
This function shall be operated preferentially if wiper is operating.

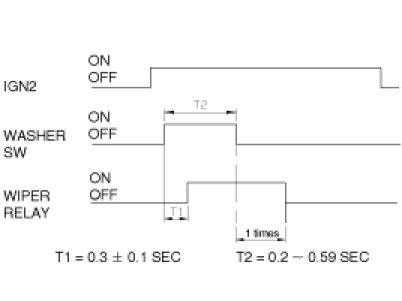

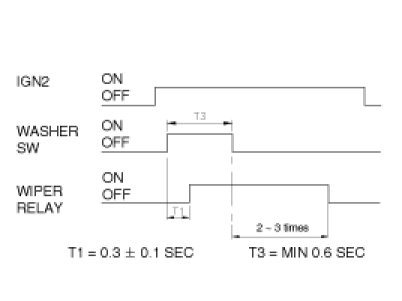

[Washer SW input more than 0.6 sec.][Washer SW input less than 0.6 sec.] 2.
Wiper operation must conform to the mode shown in figure.

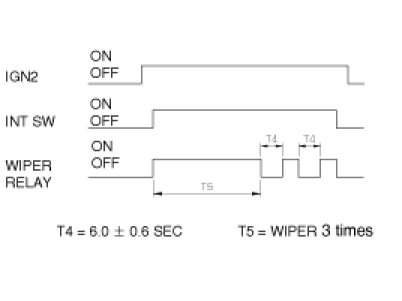

[INT Mode]
