Windshield Wiper/Washer Switch

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the steering column upper and lower shrouds(A) after loosening 3 screws.

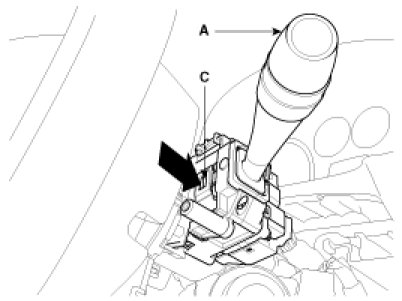

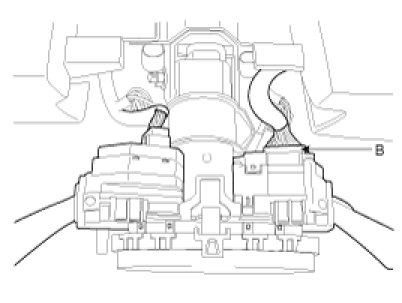

3. Remove the wiper switch (A) after disconnecting the connector(B) with pushing the lock pin (C) and loosening 2 screws.

Installation

1. Install the windshield wiper switch.
2. Connect the wiper switch connector.
3. Install the steering column upper and lower shrouds.
