Power Trunk / Liftgate Hazard Sensor: Service and Repair
Replacement 1.
Disconnect the negative (-) battery terminal.
2.
Remove the tail gate trim .
3.

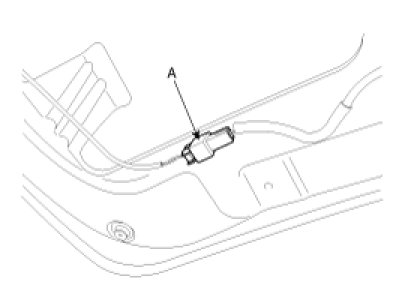

Remove the anti-pinch strip sensor connector (A).
4.

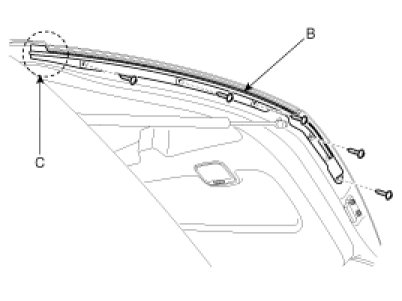

Remove the left and right side anti-pinch strip sensor (B) after removing the screws (5EA).
5.
Installation is the reverse of removal. Part (C) has to be assembled using the cloth.
