Trunk / Liftgate Latch: Service and Repair





Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the tail gate trim .
3. Remove the tail gate handle rod, actuator rod and key rod.

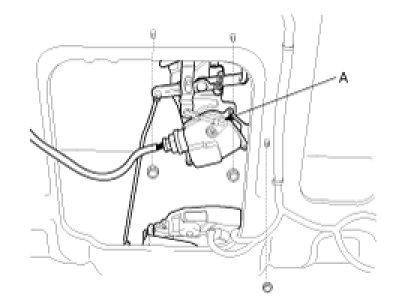

4. Remove the unlatch actuator assembly (A) after removing the connector and nuts (3EA).

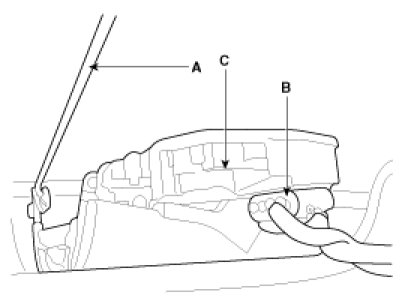

5. Remove the tail gate handle rod (A) and connector (B) from the cinching latch assembly (C).

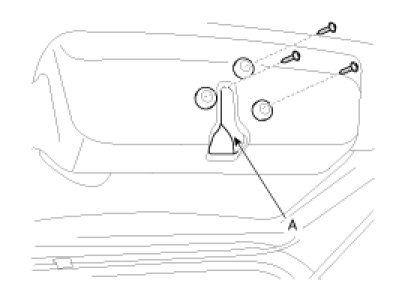

6. Remove the latch mounting screws (3EA) and cinching latch assembly (A) from the tail gate.




7. Installation is the reverse of removal.

NOTE:
- Check the power tail gate for normal operation.
- Check the normal operating whenever a power tailgate component is removed or replaced. If the chime sound is heard, check the DTC, wiring harness and cable connections.
