Repair Procedures





Replacement

Floor Console Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

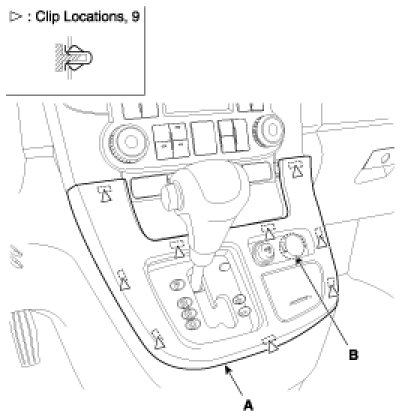

1. After the upper cover is removed(A), disconnect the connector (B).




2. Remove the following items.
A. Crash pad lower panel
B. Lower bracket
C. Glove box
D. Console side cover

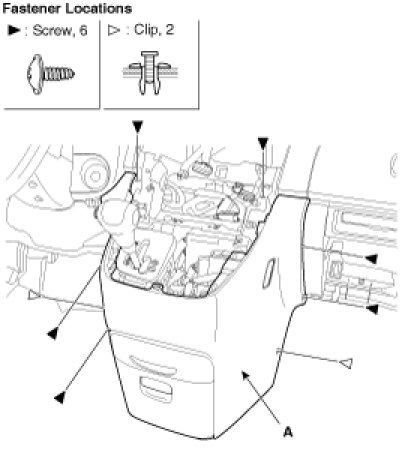

3. After loosening the console mounting screw, remove the front console (A).




4. Installation is the reverse of removal.

Cup Holder Assembly Replacement
1. Remove the front console assembly.

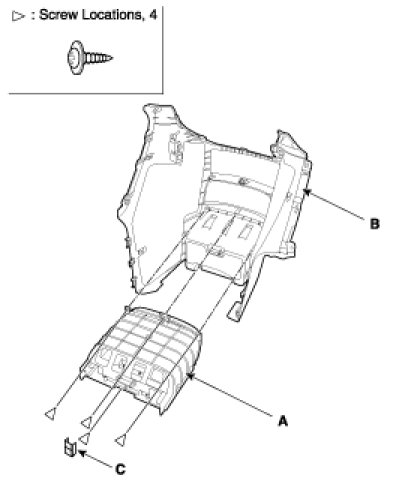

2. After removing the mounting bracket (A), remove the cup holder assembly (B).




3. Installation is the reverse of removal.

Console Box Replacement
1. Remove the console box (A).




2. Installation is the reverse of removal.
