Front Seat





Replacement

Seat Back Cover Replacement
1. Remove front seat assembly.
2. Remove the recliner cover.
3. Remove the armrest.

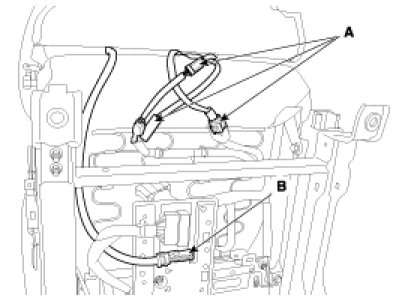

4. Remove the connector (A), (B).

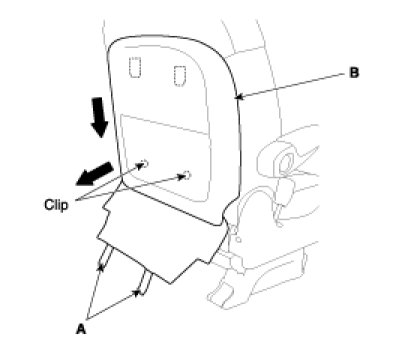

5. After disconnecting the scuff band (A), remove the seat back panel (B).




6. Remove the headrest and headrest guide (A).

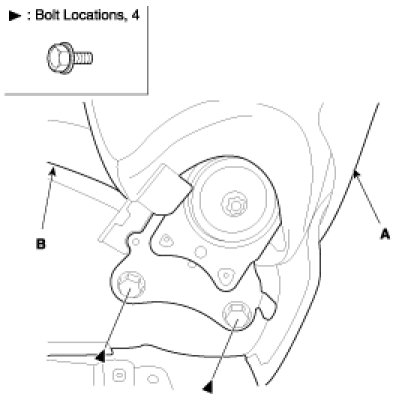

7. Loosen the mounting bolts, then remove the seat back assembly (A).




8. Disconnect the protector (A) from the back frame, then remove the hogring clips (B).




9. Disconnect the seat pad (B) from the back frame (A).

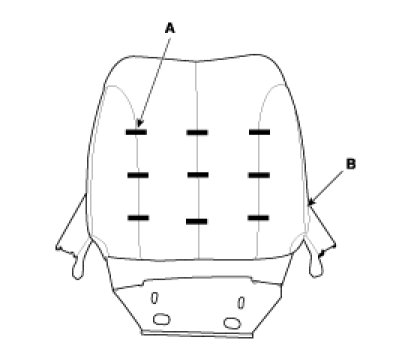

10. After removing the hog-ring clips (A) on the front of seat back remove the seat back cover (B).




11. Installation is the reverse of removal.
A. To prevent wrinkles, make sure the material is stretched evenly over the cover (A) before securing the hogring clips (B)
B. Replace the hogring clips with new ones using special tool (C).





NOTE:
- Use Hi-Scan tool to re-zero WCS system after replacing component. (Passenger's)
