Repair Procedures





Removal

1. Remove the lower crash pad.
2. Remove the brake switch connector.

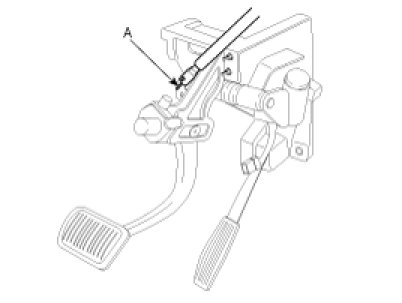

3. Remove the trans cable (A) in case of the adjustable brake pedal.

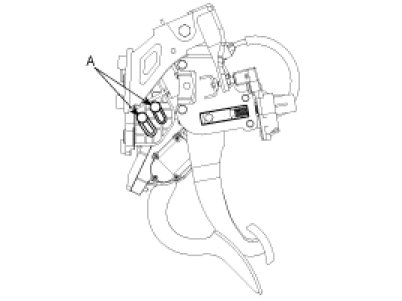

4. Remove the mounting bolt(A) of the peal position sensor connector in case of the adjustable brake pedal.

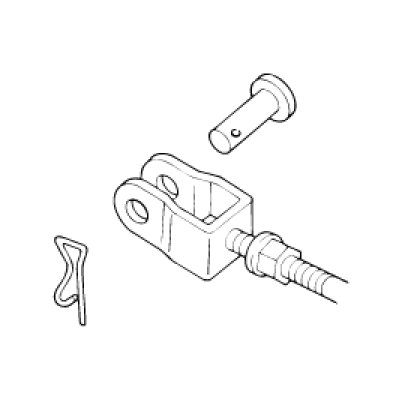

5. Remove the snap pin connecting the booster.
6. Remove the hinge shaft connecting the pedal tray.
7. Remove the brake pedal.

Installation

1. Installation is the reverse of removal.

CAUTION:
Coat the inner surface of the bushings with the specified grease.

Specified grease: Lig-2

2. Before inserting the pin, apply the specified grease to the clevis pin.




3. Install the snap pin.
4. Adjust the brake pedal height and free play.

CAUTION:
Before connecting trans cable, be sure that position of pivot pin (A) is initializing.




5. Install the stop lamp switch.
