Overhaul
Disassembly 1.

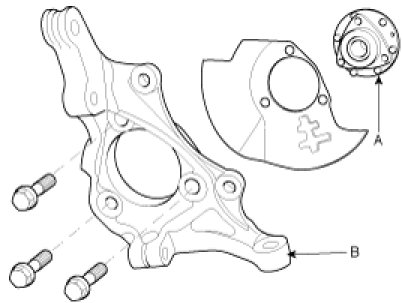

Separate the hub & bearing assembly (A) from the knuckle (B) by loosening the bolts.
Tightening torque Nm (kgf.m, lb-ft): 160 - 180 (16.0 - 18.0, 116 - 130)
Reassembly 1.
Reassembly is the reverse of disassembly.
2.

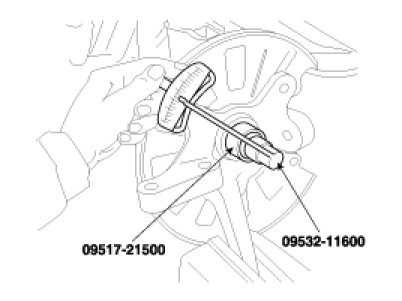

Measure the
wheel bearing starting torque.
Starting torque: 1.97 Nm (20 kgf.cm, 1.45 lb-ft)
3.
Measure the hub assembly axial play using a dial gauge.
Axial play: 0.008 mm or less
