Removal and Replacement





Removal

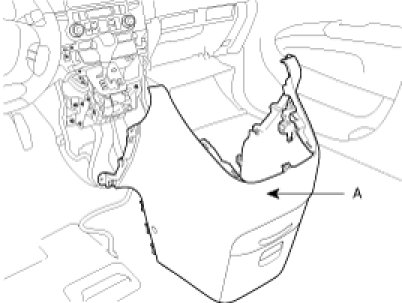

1. Remove the console upper cover(A). (see BD group).

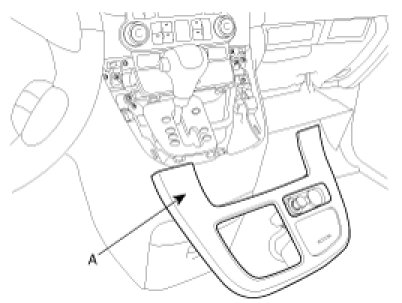

2. Remove the front console cover (A). (see BD group).

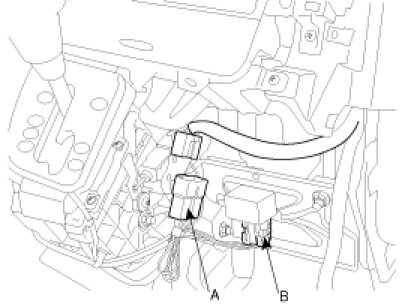

3. Disconnect the connector (A) and ATM connector (B).

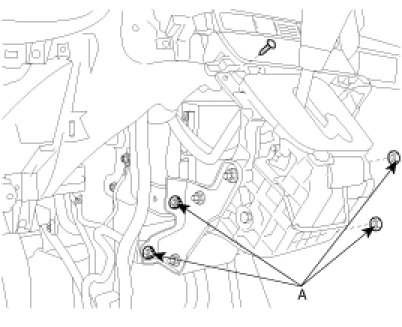

4. Remove the shift lever assembly mounting nuts (A).

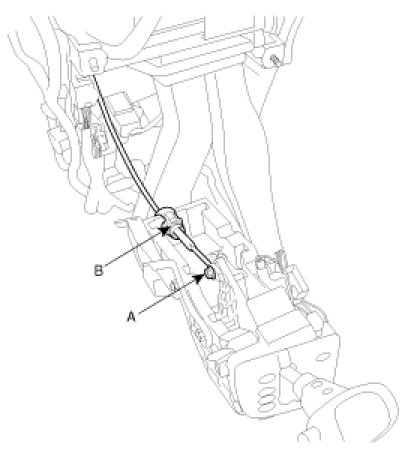

5. Remove the shift cable mounting nut (A) and cap (B).





Installation

1. Install the shift cable mounting nut (A) and cap (B).

Tightening torque :
10 - 14 Nm(100 - 140 kgf.cm, 7.3 - 10.2 lb-ft)





2. Install the shift lever assembly mounting nuts (A).

Tightening torque :
19 - 24 Nm(190 - 240 kgf.cm, 13.8 - 17.5 lb-ft)





3. Connect the connector (A) and ATM connector (B).




4. Install the front console cover (A). (see BD group)




5. Install the console upper cover(A). (see BD group).
