Quarter Window Motor: Service and Repair
ReplacementQuarter Glass Motor 1.
Remove (-) negative battery terminal.
2.

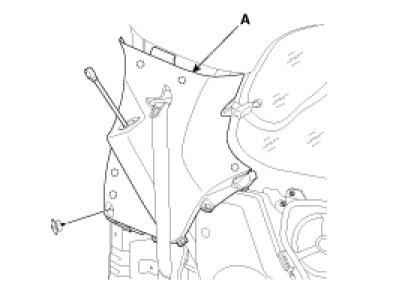

Remove the D pillar trim panel (A).
3.
Remove the quarter glass motor (B) after disconnecting the motor connector (A) and quarter glass motor mounting bolts and screws.
4.
Installation is the reverse of removal.
