Front Brake Pads
ReplacementFront Brake Pads [3.3L, 3.8L] 1.

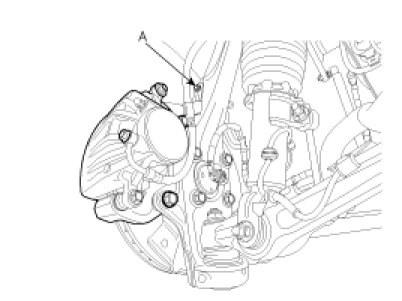

Remove the brake hose mounting bracket (knuckle mounting part : A).
2.

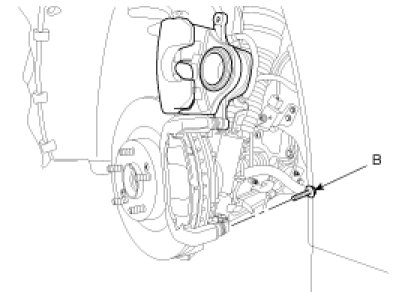

Loosen the guide rod bolt (B) and pivot the caliper up out of the way.
Tightening torque : 21.6 - 31.4N.m (2.2 - 3.2kgf.m, 15.9 - 23.1lb-ft)
3.

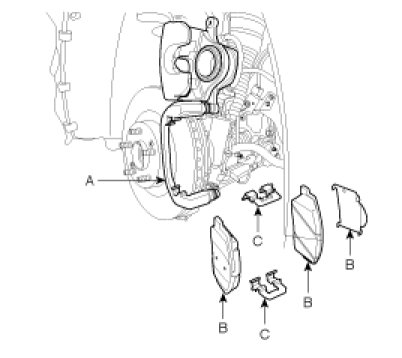

Replace pad shim (B), pad retainers (C) and
brake pads (B) in the caliper bracket (A).
CAUTION: Do not step on a brake pedal.
