Evaporative Emissions System: Testing and Inspection
Inspection[System Inspection] 1.
Disconnect the vapor hose from the throttle body and connect a vacuum pump to the nipple on the throttle body.
2.
Check the following points with applying vacuum using the vacuum pump.

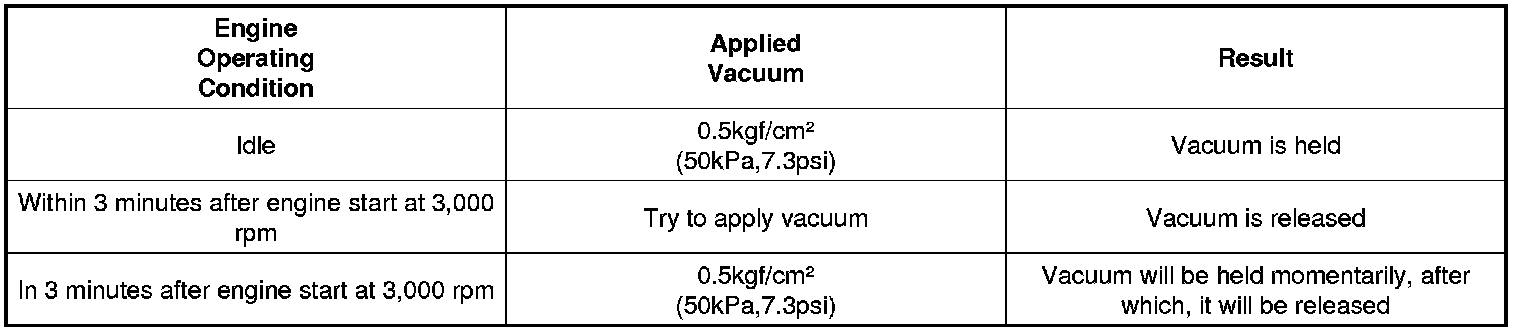

- At Cold Engine [Engine Coolant Temperature < 60°C(140°F)]

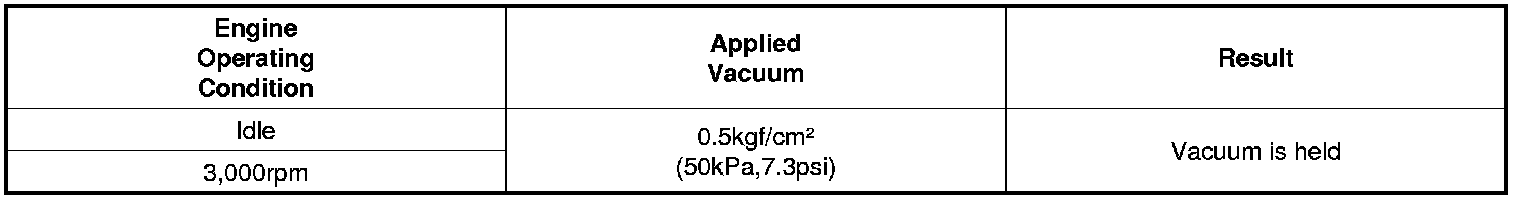

- At Warmed Engine [Engine Coolant Temperature > 80°C(176°F)]
