A/T - Vibration/Shudder On Acceleration: Overview

Group
AUTOMATIC TRANSAXLE

Number
09-AT-014

Date
JULY, 2009

Model
2009 GENESIS SEDAN 3.8L V6

Subject
TCM CALIBRATION UPDATE - REDUCED VIBRATION OR SHUDDER DURING ACCELERATION

DESCRIPTION:

This TSB provides the procedure to update the Transmission Control Module with the most recent calibration for 2009 Genesis Sedan 3.8L V6 vehicles to reduce vibration or shudder from the automatic transmission during light acceleration from 50-62 mph.

APPLICABLE VEHICLES:
Model: 2009 Genesis Sedan 3.8L V6 vehicles.

Applicable vehicle production date range: Beginning of production to May 11, 2009

Verify the version of the TCM ROM ID before attempting to update the software.

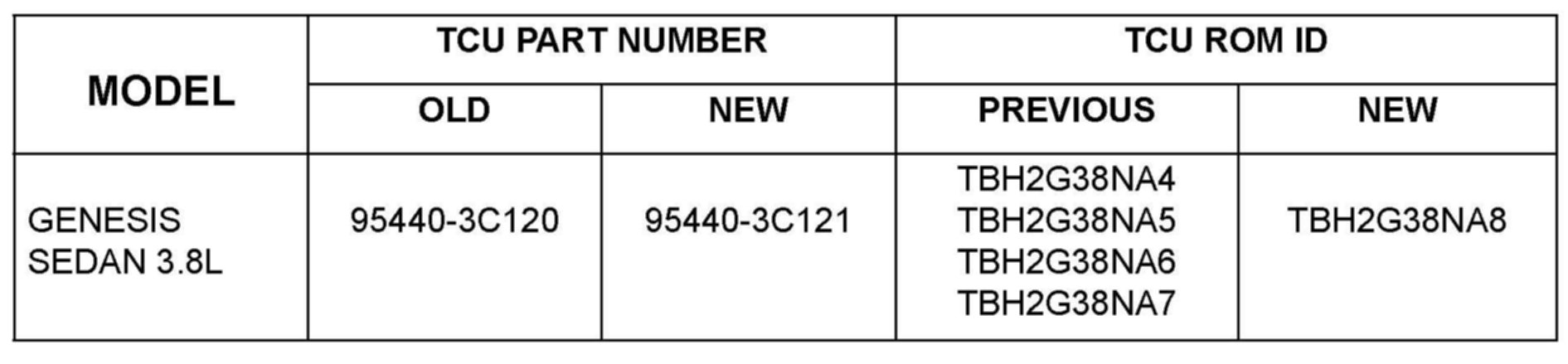

ROM ID INFORMATION TABLE





WARRANTY INFORMATION
