Shift Solenoid, A/T





Specifications

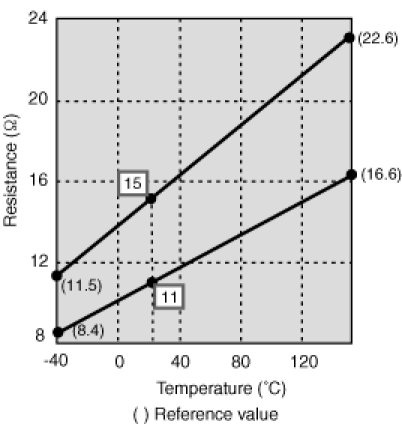

Solenoids (S1,S2,S3,S4,SR)
Resistance (at 20°C) : 11 - 15 Ohms

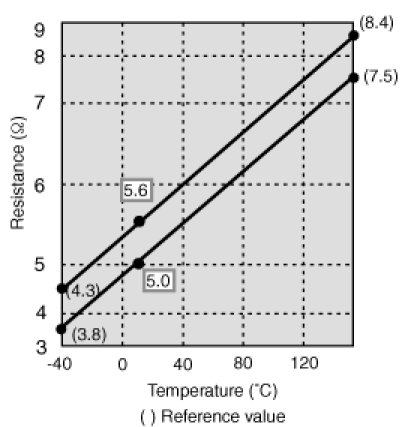

Solenoids (SLT,SLU,SL1,SL2)
Resistance (at 20°C) : 5.0 - 5.6 Ohms
