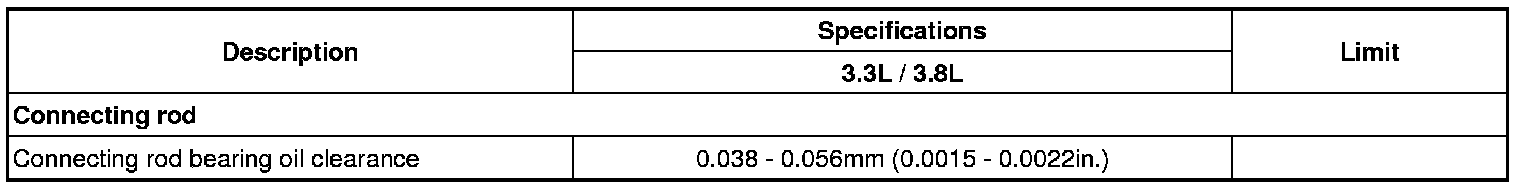

Connecting Rod Bearing Oil Clearence

Connecting Rod Bearing Oil Clearence

Connecting Rod Bearing Cap

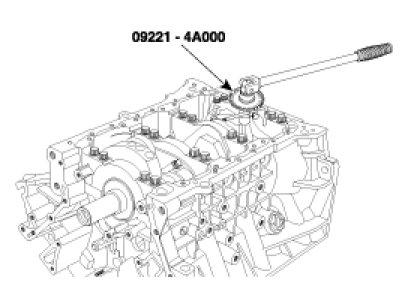

Reinstall the bearing half and cap, and torque the bolts.

Tightening torque 19.6 Nm (2.0 kgf.m, 14.46 lb-ft) + 90°

NOTE:
Do not turn the crankshaft.
