Input Speed Sensor

Replacement

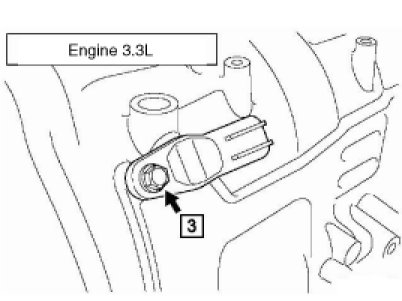

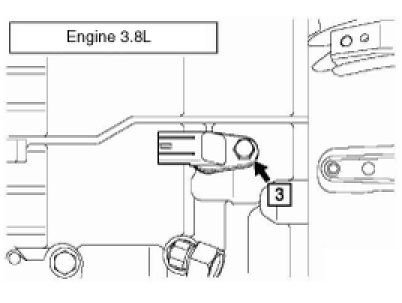

1. Remove the bolt to remove the input speed sensor from the ATM.

2. Install the input speed sensor with the bolt to the ATM.

Tightening torque :
4 - 7 Nm(0.4 - 0.7 kgf.m, 2.89 - 5.06 lb-ft)

Bolt size(3) :M6x1.0x14mm
