Front Brake Pads

Replacement

Front Brake Pads [4.6L]

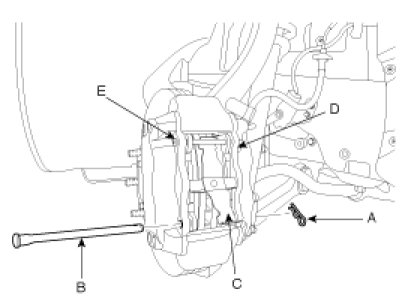

1. Remove one side locking pin(A).
Push the retraction spring(C) and extract the guide pin (B).

2. Remove other side locking pin(D), guide pin(E) and retraction spring(C).

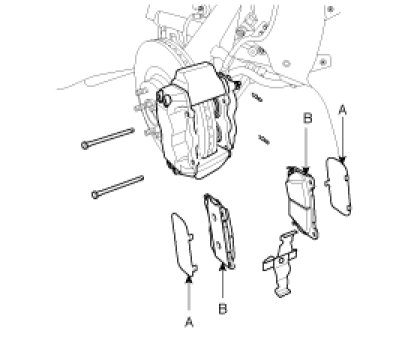

3. Remove the pad shim(A) and pad(B).

CAUTION:
Do not step on a brake pedal.
