Combination Switch: Service and Repair
Removal 1.
Disconnect the negative (-) battery terminal.
2.

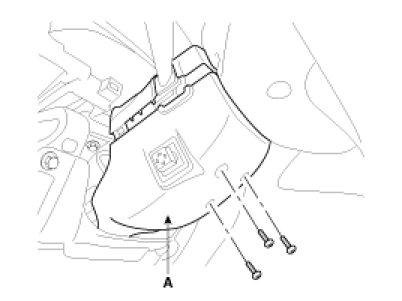

Remove the steering column upper and lower shrouds (A) after removing 3 screws and connector.
3.
Remove the multifunction switch (B) after disconnecting the connector(A).
Installation 1.
Install the multifunction switch after connecting the connectors.
2.
Install the steering column upper and lower shrouds.
