Audio Head Unit Replacement
ReplacementAudio Head Unit Replacement 1.
Remove the crash pad lower facia panel.
2.

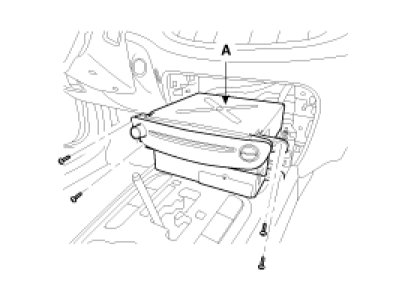

After loosening the mounting screws, remove the audio head unit (A).
3.

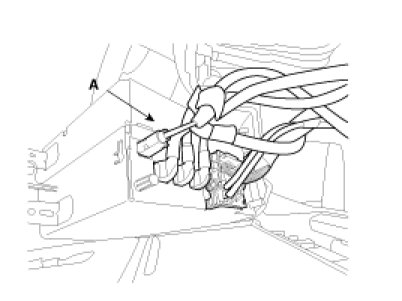

Disconnect the connectors (A).
4.
Installation is the reverse of removal.
