Main Bearing Cap
Main Bearing Cap
Reinstall the bearings and the lower crankcase assembly, and then torque the bolts.
Tightening torque :
Main bearing cap bolts (1 - 20) 37.3 - 41.2 N.m (3.8 - 4.2 kgf.m, 27.5 - 30.4 lb-ft) + 120°
Flange bolts (21 - 35) 21.6 - 25.5 N.m (2.2 - 2.6 kgf.m, 15.9 - 18.8 lb-ft)
NOTE:
Do not turn the crankshaft.
Main Bearing Size Codes

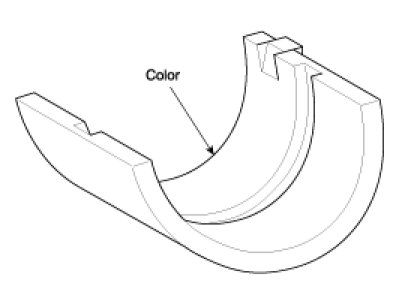

Crankshaft Main Bearing Mark Location

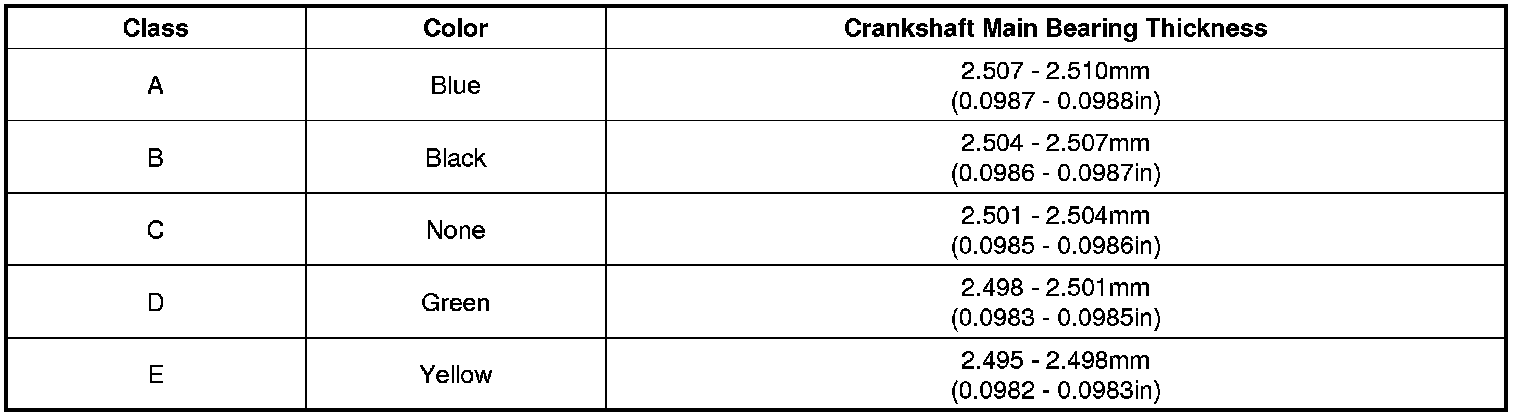

Discrimination Of Crankshaft Main Bearing

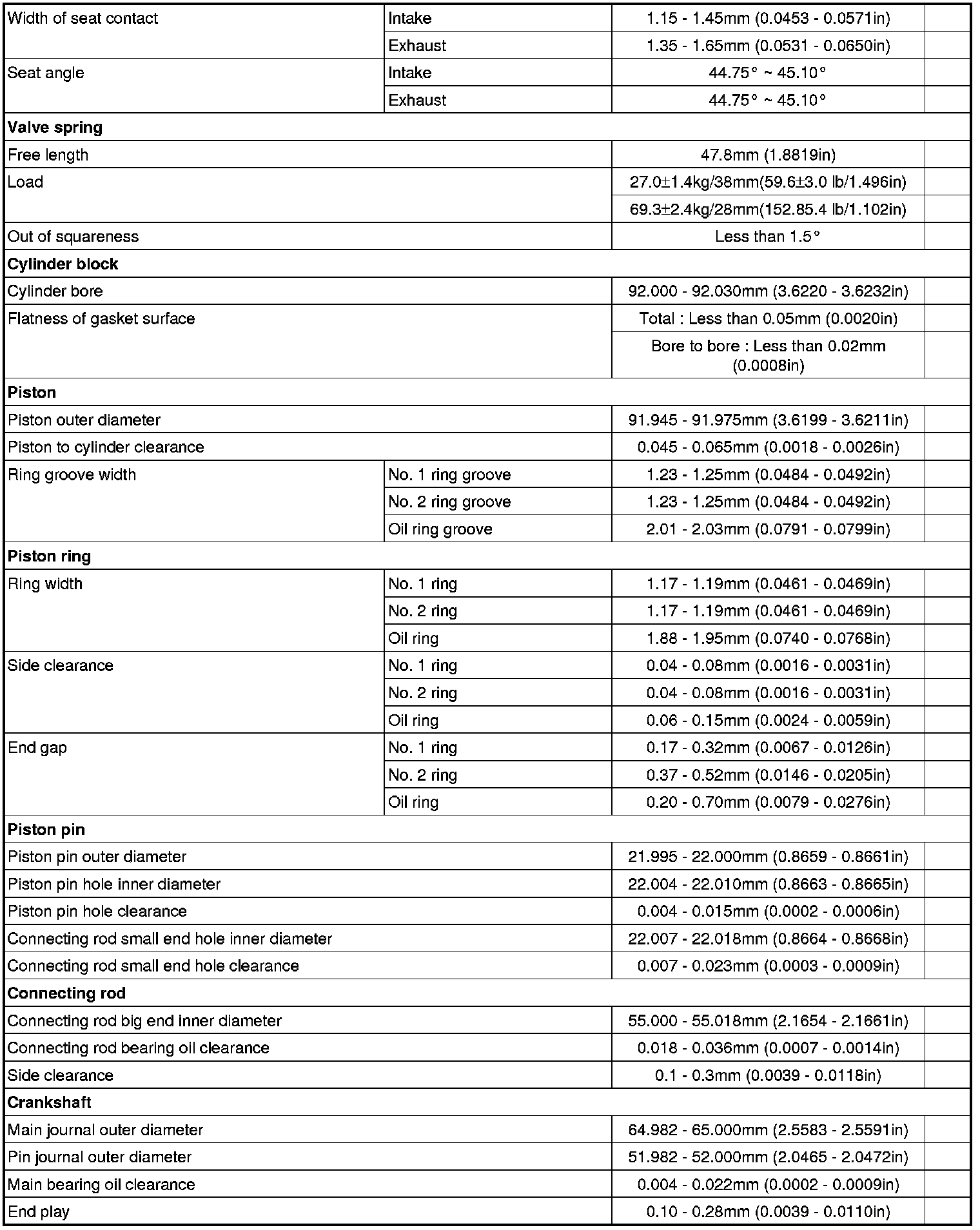

Main Bearing Clearance, standard & limit
