Camshaft Bearing Cap

Camshaft Bearing Cap

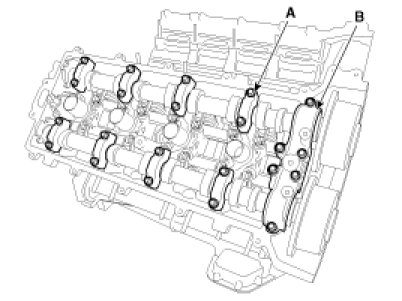

Install the camshaft bearing caps and the camshaft thrust bearing cap.

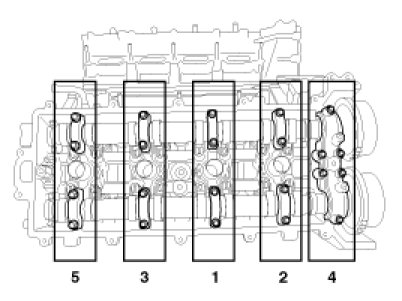

Tighten the bolts in order to below sequence.

Tightening torque :

1st step 6.9 - 7.8 N.m ( 0.7 - 0.8 kgf.m, 5.1 - 5.8 lb-ft)
2nd step 13.7 - 14.7 N.m (1.4 - 1.5 kgf.m, 10.1 - 10.8 lb-ft)











NOTE:

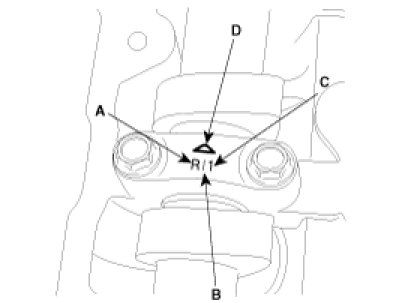

Be careful the right, left bank, intake, exhaust side before assembling.






A : L(LH),R(RH)
B : I(Intake), E(Exhaust)
C : Journal number
D : Front mark

CAUTION:
- Be sure to install the thrust bearing cap and bearing cap bolts in the correct places.
- Rotate the crankshaft not to contact the valves to the pistons by making the pistons below 10mm(0.3937in) from the top of cylinder block.
