Exhaust Manifold

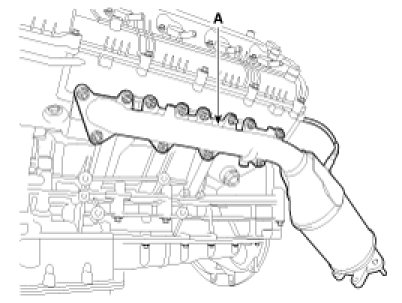

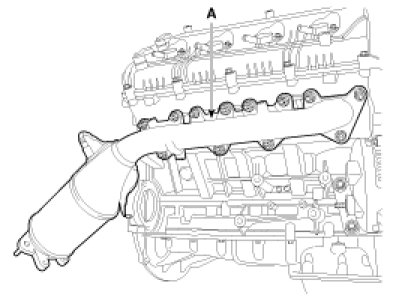

Exhaust ManifoldInstall the
exhaust manifold (A).
Tightening torque
49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)
NOTE:The "TOP" mark of the gasket must be face the
exhaust manifold.

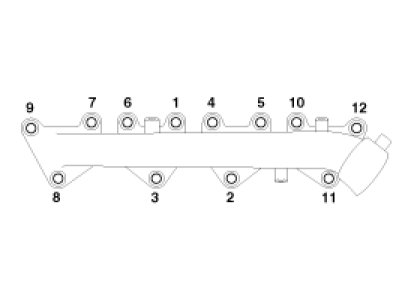

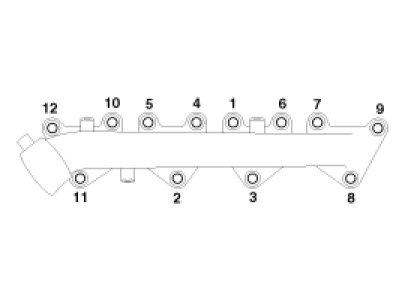

NOTE:Tighten the
exhaust manifold mounting nuts as following method.
[LH][RH]
