Front Disc Brake
Inspection 1.
Check the
brake pads for wear and fade.
2.
Check the brake disc for damage and cracks.
3.

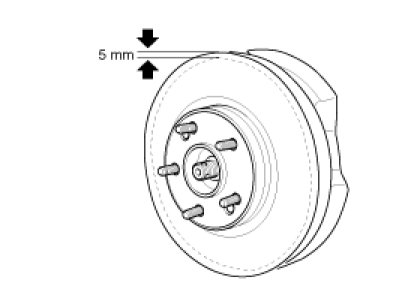

Check the thickness of the brake disc and run-out using a micrometer and a dial gauge on the part dotted line in the illustration below.
Brake disc thickness Standard: 28 mm (1.10 in)
Service limit: 26.4 mm (1.04 in)
Deviation: Less than 0.01 mm (0.00039 in)
Run-out Standard: 0.03 mm (0.00118 in) or less
