Installation

Installation

1. Install the water pump.
2. Install the air conditioning compressor. .
3. Install the cylinder head.
4. Install the power steering pump. .
5. Install the generator.
6. Install the intake manifold.
7. Install the exhaust manifold.
8. Install the timing belt.

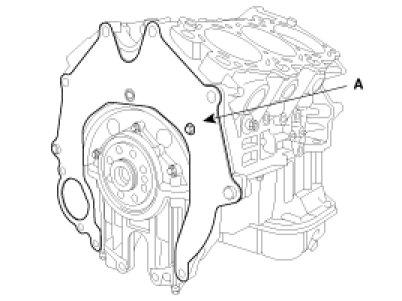

9. Install the rear plate(A).

Tightening torque
9.8 - 11.8Nm(1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)

10. Install the drive plate(A).

Tightening torque
71.6 - 75.5Nm(7.3 - 7.7kgf.m, 52.8 - 55.7lb-ft)
