Seat Frame Assembly Replacement





Seat Track / Cushion Frame Assembly Replacement
1. After removing the seat back panel, disconnect the protector.
2. Remove the power outer cover, recliner knod, and slide/height adjuster knod.

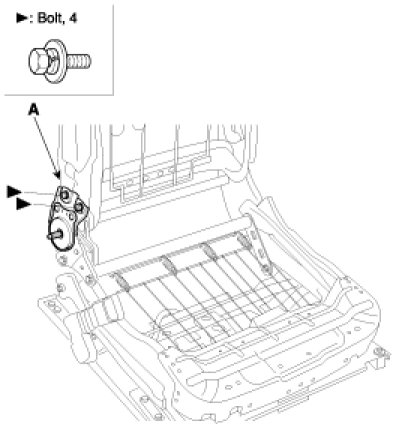

3. Remove the seat back frame assembly (A).




4. Remove the seat cushion trim cover and the seat cushion foam.

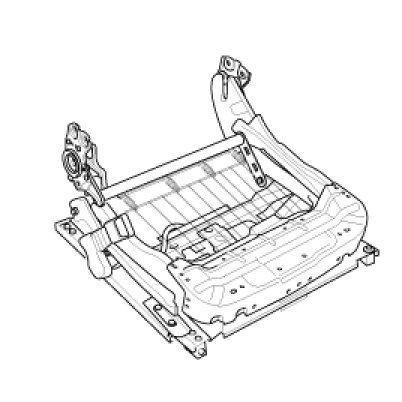

5. Remove the seat track / cushion frame assembly.




6. Installation is the reverse of removal.

NOTE:
- Be sure to perform PODS re-zero with Hi-scan (pro) after replacing parts (passengers).
