Transmission Identification Number





Transmission Identification Number

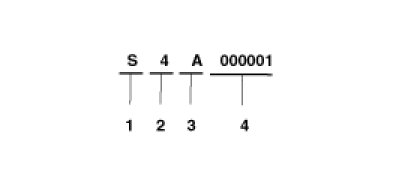

Manual




1. Model
- S : M5GF2
2. Production year
- 6 : 2006, 7 : 2007, 8 : 2008, 9 : 2009
3. Gear ratio
- A : 4.680
- B : 4.333
4. Transaxle production sequence number
- 000001 - 999999

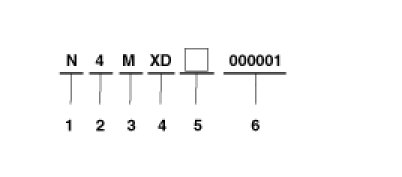

Automatic




1. Model
- N : F4A42-2
- U : A5HF1
2. Production year
- 6 : 2006, 7 : 2007, 8 : 2008, 9 : 2009
3. Gear ratio
- M : 3.770
- K : 3.333
4. Detailed classification
- XD : 2.4 (Theta engine)
- GD : 3.3 (Lambda engine)
5. Spare
6. Transaxle production sequence number
- 000001 - 999999
