Trunk / Liftgate Weatherstrip: Service and Repair

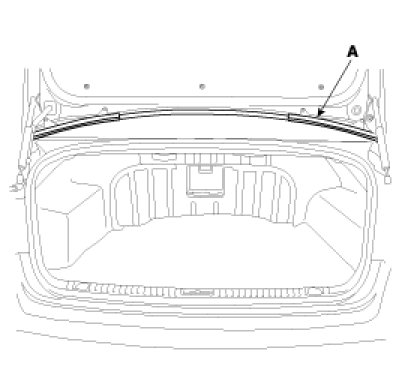

ReplacementTrunk Lid Weatherstrip Replacement 1.
Remove the trunk lid weatherstrip (A).
2.
Installation is the reverse of removal.

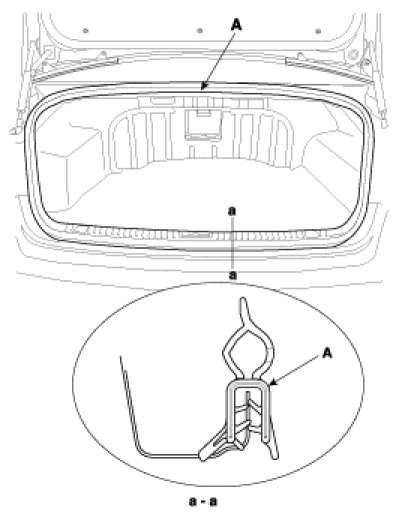

Trunk Lid Seal Weatherstrip Replacement 1.
Detach the clips, then remove the trunk lid
weatherstrip (A).
2.
Installation is the reverse of removal.
